Schaffner NSG432
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4.4 kV peak |
| Pulse Rise Time | 5 ns (typical) |
| Repetition Rate | Up to 100 kHz |
| Output Impedance | 50 Ω |
| Compliance Standards | IEC 61000-4-4 (EFT/Burst) |
| Burst Duration | 15 ms |
| Burst Period | 300 ms |
| Power Supply Input | 100–240 VAC, 50/60 Hz |
| Interface / Control | RS-232 / IEEE 488 (GPIB) |
| Operating Temperature | 15°C to 35°C (59°F to 95°F) |
| Model | NSG432 |
|---|

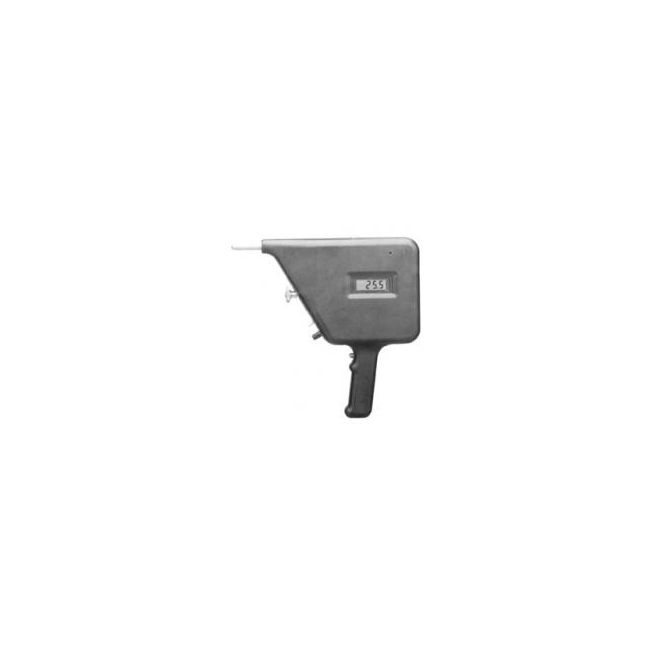

The Schaffner NSG432 is a compact ESD simulator system designed for generating electrostatic discharges up to 25kV, ideal for military specifications and advanced testing. It features polarity selection, discharge capacitors of 150 pF ±10%, and resistors of 330 ohms ±10%, meeting IEC 61000-4-2 standards.
Its operating modes include single and repetitive discharges at 20Hz, with rise times under 1 ns for air discharge and 0.7–1 ns using contact discharge adapters. An LCD shows precise settings, controlled by a multi-turn potentiometer.
Testwall can supply the used Schaffner NSG432, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG432.
