Schaffner NSG600
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 6.6 kV peak |
| Output Current | Up to 200 A peak |
| Pulse Rise Time | Less than 5 ns |
| Frequency Range | DC to 400 MHz |
| Pulse Width | Adjustable from 1 ns to continuous |
| Coupling Modes | Capacitive and inductive coupling supported |
| Standards Compliance | IEC 61000-4-4 (EFT/Burst), IEC 61000-4-5 (Surge) |
| Input Power Supply | 100–240 V AC, 50/60 Hz |
| Interface | USB and GPIB remote control interface |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Model | NSG600 |
|---|

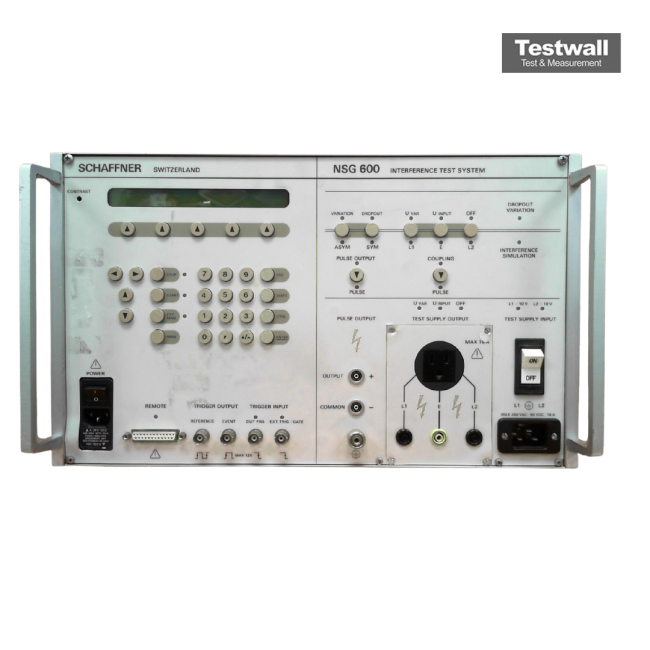

The Schaffner NSG600 Interference Simulator System is engineered to simulate a wide range of transient conditions occurring in both AC and DC mains. It includes a robust main frame supporting up to four plug-in units, ensuring flexible disturbance generation. With a centralized power supply, microprocessor-controlled function keys, and an LCD display, the NSG600 delivers precise control. It also offers RS 232-C interface for seamless computerized remote operation and provides direct connection to the unit under test with reliable pulse output.
This interference simulator is ideal for laboratories and research facilities needing controlled, repeatable transient simulations. Its modular design with plug-in units makes it adaptable to various testing requirements across electrical environments.
Testwall can supply the used Schaffner NSG600, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG600.
