Sorensen

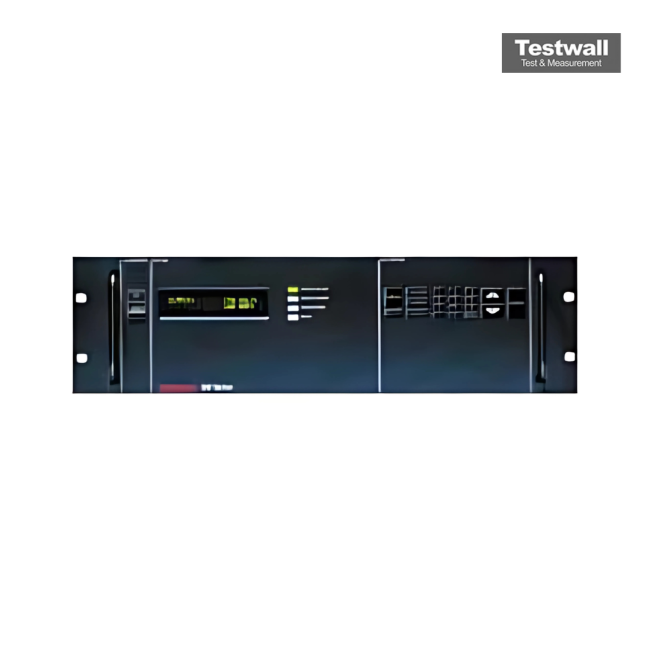

Sorensen DCR110-90T
110V-90A DC Power Supply
0 - 110 VDC Output Voltage
0 - 90 A Output Current
9900 W (9.9 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 110 VDC |
| Output Current | 0 - 90 A |
| Output Power | 9900 W (9.9 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Ripple and Noise | 0.05% RMS / 0.15% peak-to-peak of full scale output |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Forced air cooling |
Sorensen DCR110-90T Options:
- DCR110-90T - T1 - 208V, 60Hz, STD. U.S. Voltage
- DCR110-90T - T2 - 380V, 50Hz, STD. Continental Europe Voltage
- DCR110-90T - T3 - 415V, 50Hz, STD. British Isles Voltage
- DCR110-90T - T4 - 440V, 60Hz (208 Vac ±10% @ 60Hz)
- DCR110-90T - T5 - 480V, 60Hz (480 Vac ±10% @ 60Hz)
- DCR110-90T - 1060247-1 - Chassis Slides (Optional)
- DCR110-90T - 488 MICRO DAP - Interface to GPIB Bus (Digital Programmer)
- DCR110-90T - M5 - SCR Crowbar (OVP Shutdown, Standard Option)
- DCR110-90T - M52 - Analog Metering (add to standard digital)
| Model | DCR110-90T |
|---|
