Sorensen

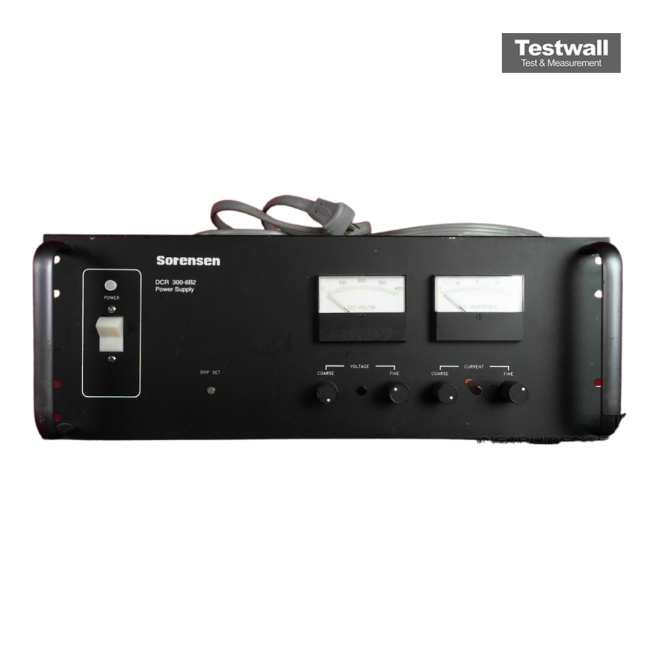

Sorensen DCR300-6B
300-6A DC Power Supply
0 – 300 VDC Output Voltage
0 – 6 A Output Current
1800 W Output Power
208/240 VAC, Single Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 300 VDC |
| Output Current | 0 – 6 A |
| Output Power | 1800 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 1 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCR300-6B Options:
- DCR300-6B - M1 - 208 Vac ±10% input voltage
- DCR300-6B - M2 - 220 Vac ±10% input voltage
- DCR300-6B - M3 - 230 Vac ±10% input voltage
- DCR300-6B - M35 - Polarity & load disconnect
- DCR300-6B - M50 - LCD digital meters
| Model | DCR300-6B |
|---|
The DCR300-6B is a member of the 1800W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and optional Voltage protection (OVP).
