Sorensen

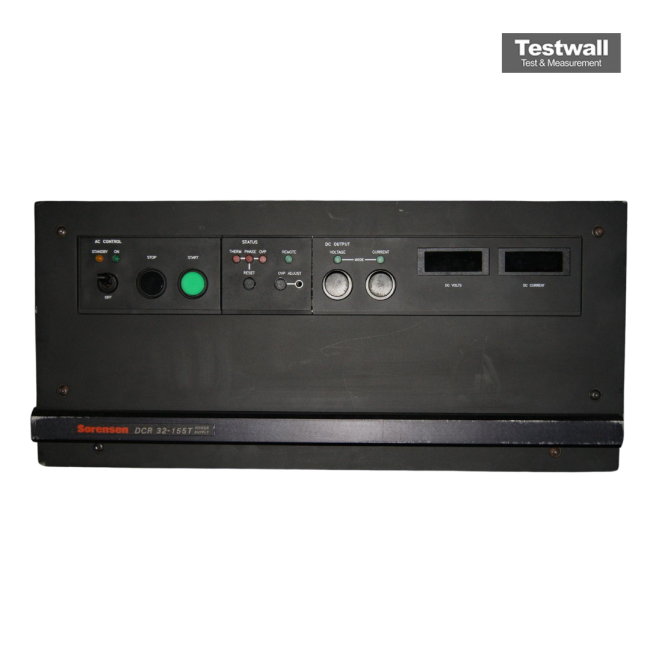

Sorensen DCR32-155T
32-155A DC Power Supply
0 - 32 VDC Output Voltage
0 - 155 A Output Current
4960 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 32 VDC |
| Output Current | 0 - 155 A |
| Output Power | 4960 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen DCR32-155T Options:
- DCR32-155T - T1 - 208V, 60Hz, STD. U.S. Voltage
- DCR32-155T - T2 - 380V, 50Hz, STD. Continental Europe Voltage
- DCR32-155T - T3 - 415V, 50Hz, STD. British Isles Voltage
- DCR32-155T - T4 - 440V, 60Hz (208 Vac ±10% @ 60Hz input)
- DCR32-155T - T5 - 480V, 60Hz (480 Vac ±10% @ 60Hz input)
- DCR32-155T - 1060247-1 - Chassis Slides
- DCR32-155T - 488 MICRO DAP - Digital Programmer: Interface to GPIB Bus (IEEE-488)
- DCR32-155T - M5 - OVP SCR Crowbar (Option: add M5)
- DCR32-155T - M52 - Analog Metering (add M52)
| Model | DCR32-155T |
|---|
