Sorensen

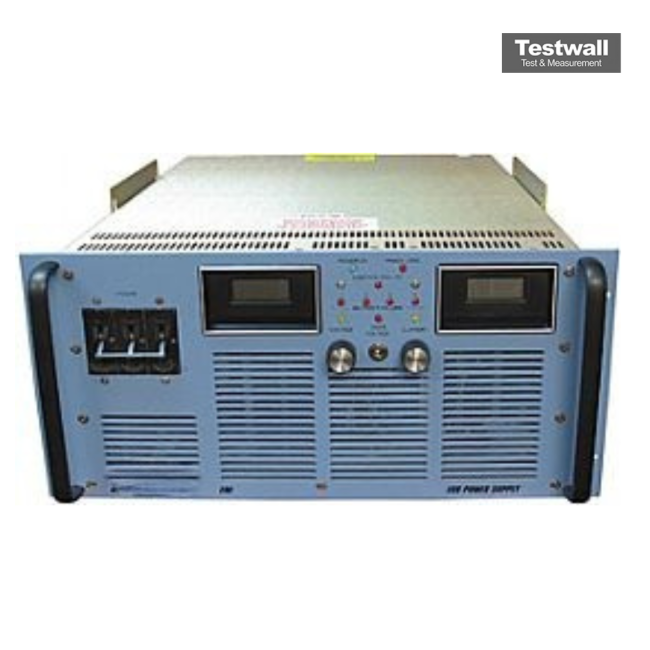

Sorensen DCR32-310T1
32-310A1 DC Power Supply
32 V Output Voltage
310 A Output Current
9,920 W Output Power
208/240 VAC, 3-Phase Input Voltage
47–63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 32 V |
| Output Current | 310 A |
| Output Power | 9,920 W |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47–63 Hz |
| Line Regulation | 0.05% of full-scale output |
| Load Regulation | 0.05% of full-scale output |
| Ripple and Noise (RMS) | 0.1% of full-scale output voltage |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen DCR32-310T1 Options:
- DCR32-310T1 - T1 - STD. U.S. VOLTAGE, 208V, 60HZ
- DCR32-310T1 - T2 - STD. U.S. VOLTAGE, 380V, 50HZ
- DCR32-310T1 - T3 - STD. CONTINENTAL EUROPE VOLTAGE, 415V, 50HZ
- DCR32-310T1 - T5 - STD. BRITISH ISLES VOLTAGE, 480V, 60HZ
- DCR32-310T1 - 1060247-1 - Chassis Slides (Optional)
- DCR32-310T1 - 488 MICRO DAP - Interface to GPIB Bus, Order Model 488 MICRO DAP
- DCR32-310T1 - M5 - OVP Option: SCR crowbar M5
- DCR32-310T1 - Digital Metering - Digital: Standard
- DCR32-310T1 - Analog Metering - Analog: add M52
| Model | DCR32-310T1 |
|---|
The DCR32-310T1 is a member of the 10kW DCR-T family of 3-phase input, general purpose, rackmount Power supplies. It features Dual Digital panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection
