Tektronix 80C15
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1620 nm |
| Optical Bandwidth | 65 GHz |
| Electrical Bandwidth (Equivalent Time) | 50 GHz |
| Connector Type | Single Mode FC/PC |
| Maximum Input Power | +3 dBm average, +10 dBm peak |
| Sensitivity | -14 dBm average at 1550 nm |
| Rise Time | Less than 7 ps |
| Compatible Mainframes | DSA8300, CSA8000B, TDS8000B Series Sampling Oscilloscopes |
| Module Slots Required | 1 Slot |
| Optical Return Loss | Greater than 27 dB |
| Model | 80C15 |
|---|

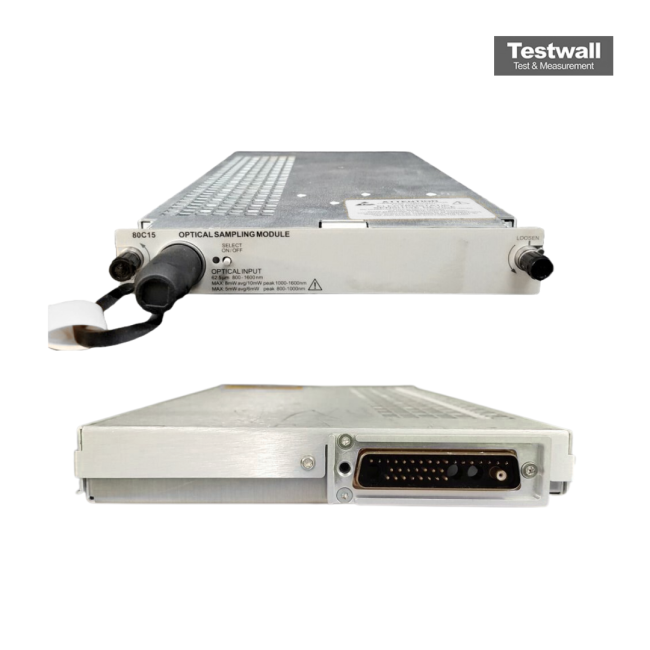

The Tektronix 80C15 optical sampling module, used with DSA8300 oscilloscopes, delivers complete testing for telecom and datacom protocols from 125 Mb/s to 400G Ethernet. It includes optical-to-electrical conversion, power monitoring, reference filters, optional clock recovery, and universal input.
Designed for 850, 1310, and 1550 nm testing, it supports rates such as 25.781 Gb/s, 27.952 Gb/s, and 28.05 Gb/s with unfiltered bandwidth >32 GHz and -8 dBm sensitivity at 1310 nm.
Testwall can supply the used Tektronix 80C15, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C15.
