Sorensen

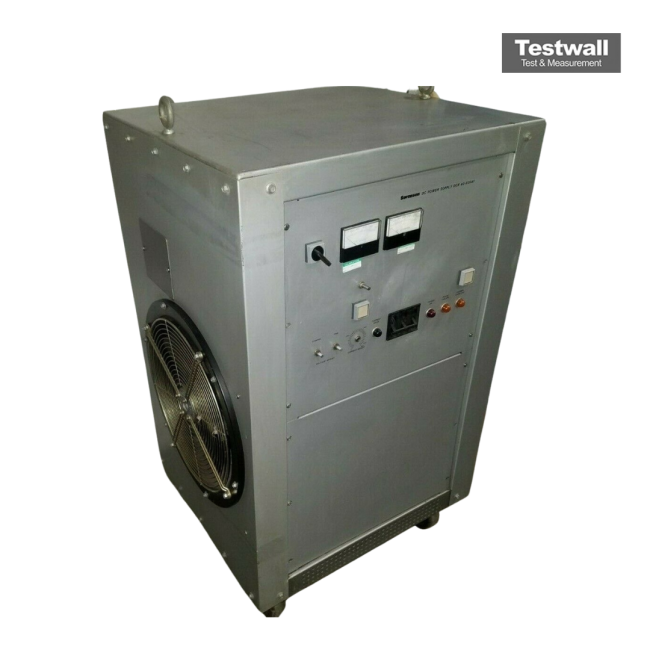

Sorensen DCR40-125A
40-125A DC Power Supply
0 - 40 VDC Output Voltage
0 - 125 A Output Current
5000 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 VDC |
| Output Current | 0 - 125 A |
| Output Power | 5000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 10 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Remote Sensing | Yes, included for compensating line voltage drops |
Sorensen DCR40-125A Options:
- DCR40-125A - M1 - 187-229 Vac, 1 phase, 57-63 Hz, 100% Eo max.
- DCR40-125A - M3 - 207-253 Vac, 1 phase, 57-63 Hz, 100% Eo max.
- DCR40-125A - M6 - 342-418 Vac, 3 phase, 47-63 Hz, 90% Eo max.
- DCR40-125A - M8 - 390-440 Vac, 1 phase, 47-63 Hz, 100% Eo max.
- DCR40-125A - M5 - Overvoltage Protection (OVP) adjustable crowbar
- DCR40-125A - ST101 - Step Down Input Transformer, 380/415/460 Vac three phase to 208/230 Vac three phase @ 8 kW
| Model | DCR40-125A |
|---|
The Sorensen DCR40-125A is a DC Power Supply.
