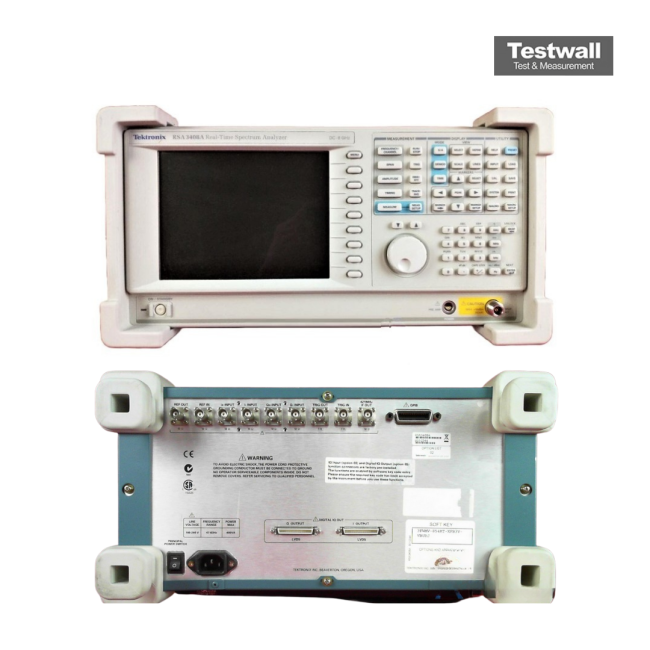

Tektronix RSA3408A
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 8 GHz |
| Real-Time Bandwidth | 36 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (swept mode); 305 Hz to 5 MHz (real-time mode) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Spurious Free Dynamic Range (SFDR) | -70 dBc (typical) |
| Trigger Modes | Free Run, External, Power (RF), Frequency Mask Trigger (FMT), Time |
Tektronix RSA3408A Options:
- RSA3408A - Opt. 21 - Advanced Measurement Suite Software
- RSA3408A - Opt. 23 - W-CDMA Uplink Analysis Software
- RSA3408A - Opt. 24 - GSM/EDGE Analysis Software
- RSA3408A - Opt. 25 - cdma2000 1x Analysis Software
- RSA3408A - Opt. 26 - 1xEV-DO Analysis Software
- RSA3408A - Opt. 27 - 3GPP Release 5 Downlink (HSDPA) Analysis Software
- RSA3408A - Opt. 28 - TD-SCDMA Analysis Software
- RSA3408A - Opt. 29 - WLAN 802.11 a/b/g Analysis Software
- RSA3408A - RSA34UP21 - Advanced Measurement Suite Upgrade (customer-installable)
- RSA3408A - RSA34UP23 - W-CDMA Uplink Analysis Upgrade (customer-installable)
- RSA3408A - RSA34UP24 - GSM/EDGE Analysis Upgrade (customer-installable)
- RSA3408A - RSA34UP25 - cdma2000 1x Analysis Upgrade (customer-installable)
- RSA3408A - RSA34UP26 - 1xEV-DO Analysis Upgrade (customer-installable)
- RSA3408A - RSA34UP27 - 3GPP Release 5 Downlink (HSDPA) Analysis Upgrade (customer-installable)
- RSA3408A - RSA34UP28 - TD-SCDMA Analysis Upgrade (customer-installable)
- RSA3408A - RSA34UP29 - WLAN 802.11 a/b/g Analysis Upgrade (customer-installable)
| Model | RSA3408A |
|---|
The Tektronix RSA3408A Real-Time Spectrum Analyzer captures a continuous 36 MHz bandwidth, enabling seamless analysis in Frequency, Time, and Modulation domains. It offers Frequency Mask Trigger, multi-domain analysis, and built-in suites for WLAN and pulsed signal testing. Compatible with TekConnect probes, it supports comprehensive RF signal evaluations.
Ideal for analyzing RF behavior in mobile, radar, RFID, and communication devices, it detects transient events and displays time-correlated frequency shifts. Supports standards like W-CDMA, cdma2000, EVDO, and more.
Testwall can supply the used Tektronix RSA3408A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA3408A.
