Sorensen

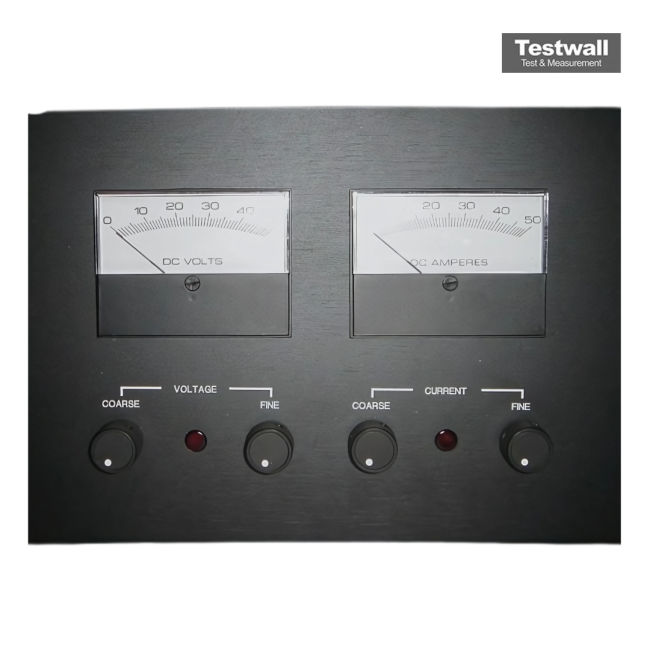

Sorensen DCR40-20
40-20 DC Power Supply
0 – 40 VDC Output Voltage
0 – 20 A Output Current
800 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 40 VDC |
| Output Current | 0 – 20 A |
| Output Power | 800 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 1 mV RMS / 5 mV Peak-to-Peak |
| Programming Accuracy (Voltage) | 0.05% + 10 mV |
| Remote Sensing | Up to 0.5 V per lead compensation |
| Operating Temperature | 0°C to 50°C |
| Model | DCR40-20 |
|---|
