Sorensen
Sorensen DCR60-30B
60-30A DC Power Supply
0 – 60 VDC Output Voltage
0 – 30 A Output Current
1800 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 60 VDC |
| Output Current | 0 – 30 A |
| Output Power | 1800 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 1 mV RMS / 5 mV Peak-to-Peak |
| Operating Temperature | 0°C to 50°C |
| Remote Sensing | Yes |
| Form Factor | Rack Mountable, 3U |
Sorensen DCR60-30B Options:
- DCR60-30B - M1 - 208 Vac ± 10% input voltage
- DCR60-30B - M2 - 220 Vac ± 10% input voltage
- DCR60-30B - M3 - 230 Vac ± 10% input voltage
- DCR60-30B - M35 - Polarity & load disconnect
- DCR60-30B - M50 - LCD digital meters
| Model | DCR60-30B |
|---|

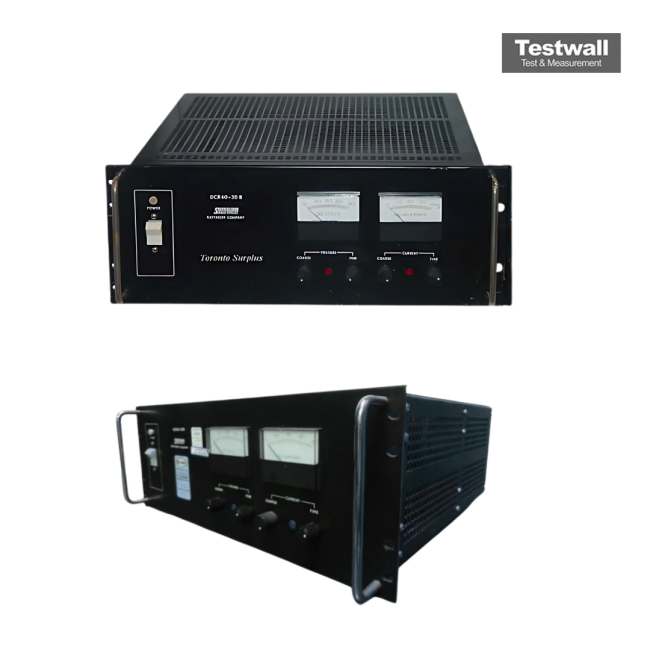

The Sorensen DCR60-30B is a member of the 1800W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and optional Voltage protection
