Tektronix DSA72004
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Sample Rate | 50 GS/s (single channel), 25 GS/s (all channels) |
| Number of Channels | 4 |
| Record Length | Up to 250 Mpoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 17.5 ps |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Display | 15.3-inch XGA color display (1024 x 768 resolution) |
| Operating System | Windows XP Professional |
| Connectivity | USB, GPIB, LAN (10/100/1000Base-T Ethernet) |
Tektronix DSA72004 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA72004 - 2XL - Extended record length
- DSA72004 - 5XL - Extended record length
- DSA72004 - 10XL - Extended record length
- DSA72004 - 20XL - Extended record length
- DSA72004 - 50XL - Extended record length
- DSA72004 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA72004 - DJAN - DPOJET jitter and noise analysis
- DSA72004 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA72004 - DDRA - DDR memory bus analysis
- DSA72004 - ST6G - 6.25 Gb/s serial pattern trigger
- DSA72004 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA72004 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA72004 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA72004 - SR-USB - USB 2.0 serial triggering and analysis
- DSA72004 - SR-PCIE - PCI Express serial analysis
- DSA72004 - SR-810B - 8b/10b serial analysis
- DSA72004 - MTH - Mask testing
- DSA72004 - LT - Limit testing
- DSA72004 - VET - Visual trigger
- DSA72004 - ASM - Advanced search and mark

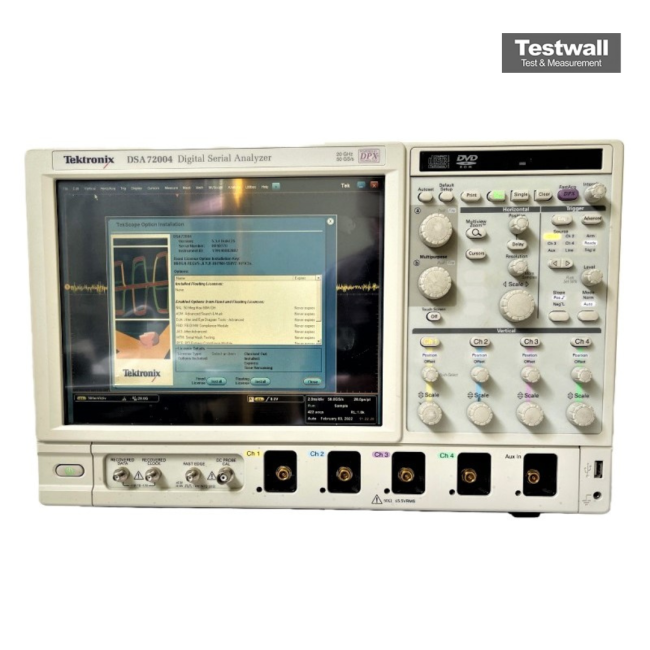

The Tektronix DSA72004 is a 20 GHz digital serial analyzer designed for capturing and analyzing high-speed digital signals, such as InfiniBand and Fibre Channel. It features a 50 GS/s real-time sampling rate per channel, deep memory for extended capture durations, and advanced jitter decomposition tools. Additionally, it supports time-correlated and frequency domain analysis, and is compatible with DDR, Ethernet, and DisplayPort testing protocols.
Ideal for engineers working with high-speed designs, the DSA72004 ensures precise insights into digital system performance and signal integrity with its extensive protocol support and analytical capabilities.
Testwall can supply the used Tektronix DSA72004, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA72004.
