Sorensen

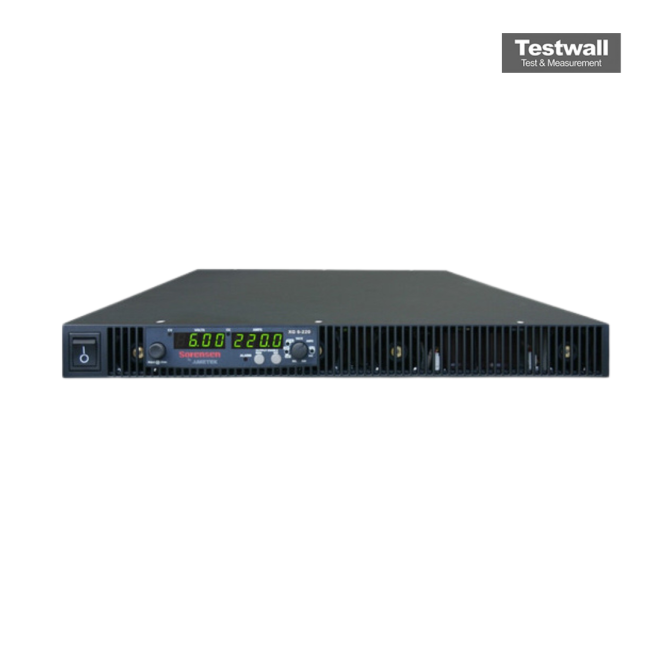

Sorensen DCR60-45B2
60-45A2 DC Power Supply
0 - 60 VDC Output Voltage
0 - 45 A Output Current
2700 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 VDC |
| Output Current | 0 - 45 A |
| Output Power | 2700 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 1 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCR60-45B2 Options:
- DCR60-45B2 - M1 - Optional Input: 208V
- DCR60-45B2 - M2 - Optional Input: 220V
- DCR60-45B2 - M3 - Optional Input: 230V
| Model | DCR60-45B2 |
|---|
