Sorensen

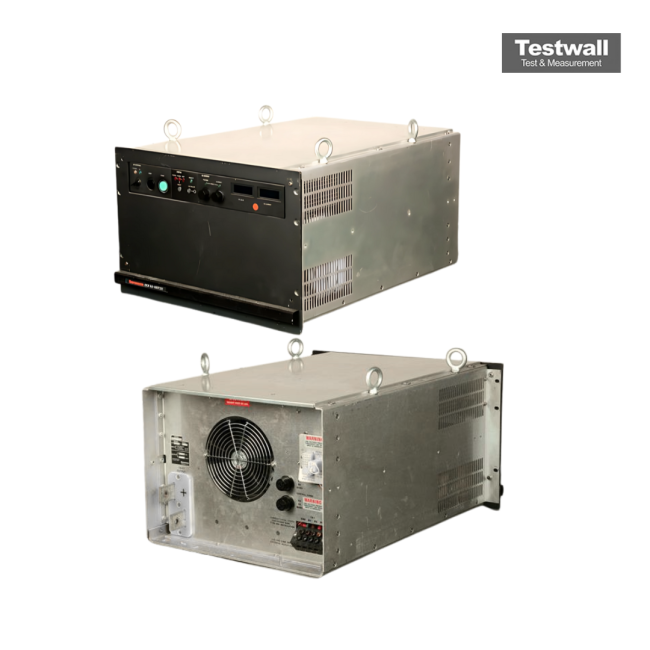

Sorensen DCR8-400T
8-400A DC Power Supply
8 VDC Output Voltage
400 A Output Current
3200 W Output Power
208/240 VAC, Single Phase Input Voltage
47–63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 8 VDC |
| Output Current | 400 A |
| Output Power | 3200 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47–63 Hz |
| Line Regulation | 0.05% of full scale output |
| Load Regulation | 0.05% of full scale output |
| Ripple and Noise (RMS) | 0.1% of full scale output |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Forced Air Cooling |
Sorensen DCR8-400T Options:
- DCR8-400T - T1 - 208V, 60Hz, STD. U.S. Voltage
- DCR8-400T - T2 - 380V, 50Hz, STD. Continental Europe Voltage
- DCR8-400T - T3 - 415V, 50Hz, STD. British Isles Voltage
- DCR8-400T - T4 - 440 Vac ±10% @ 60Hz Input
- DCR8-400T - T5 - 480 Vac ±10% @ 60Hz Input
- DCR8-400T - M2 - Digital Metering (standard)
- DCR8-400T - M5 - Analog Metering (add M5)
- DCR8-400T - 1060247-1 - Chassis Slides
- DCR8-400T - 488 MICRO DAP - Interface to GPIB Bus (Digital Programmer)
- DCR8-400T - OVP - Over Voltage Protection; SCR crowbar (standard)
| Model | DCR8-400T |
|---|
