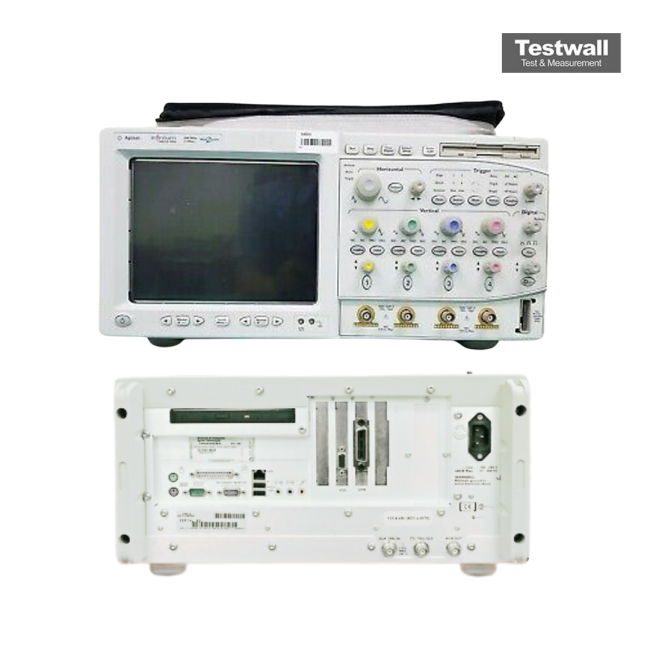

Keysight (Agilent) 54831D
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 4 GSa/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 32 Mpts per channel |
| Vertical Resolution | 8-bit |
| Timebase Range | 200 ps/div to 20 s/div |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Logic Analyzer Channels | 16 Digital (Mixed Signal Oscilloscope) |
| Display | 10.4-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, USB, LAN |
Keysight (Agilent) 54831D 4 Channel 600MHz+ 16 Logic Channels Options:
- 54831D - 001 - Additional Standard Probes
- 54831D - 002 - Add One 1162A 1:1 Passive Probe
- 54831D - 003 - Add One 1163A 10:1 500 O, Low C Passive Probe
- 54831D - 004 - Add Four 1161A Probes For The 54846A
- 54831D - 005 - Add One 54826-68701 Logic Probe Kit
- 54831D - 006 - My Infiniium Integration Package Option
- 54831D - 007 - Add One Wedge Adapter Kit (1 Each 3/8/16 Signals, 0.5 Mm)
- 54831D - 008 - Add One 1153A 200 MHZ Differential Probe
- 54831D - 009 - Add One 1154A 500 MHZ Differential Probe
- 54831D - 010 - Add One 1159A 1 GHZ Differential Probe
- 54831D - 011 - Add One 1155A 2 Channel, 750 MHZ Active Probe
- 54831D - 012 - Add One 1156A 1.5 GHZ Active Probe
- 54831D - 013 - Add One 1157A 2.5 GHZ Active Probe (For 54835/45/46A)
- 54831D - 014 - Add One 1158A 4 GHZ Active Probe (For 54845/46A)
- 54831D - 015 - Ezjit Jitter Analysis Software Option
- 54831D - 016 - Add One Ez-Probe Positioner (E2654A)
- 54831D - 017 - >=20 Gb Removable Hard Disk Drive
- 54831D - 021 - Low-Speed Serial Data Analysis Software Option
- 54831D - 040 - 8M / 4M Memory Depth Interleaved / Each Channel
- 54831D - 080 - 16M / 8M Memory Depth Interleaved / Each Channel
- 54831D - 160 - 32M / 16M Memory Depth Interleaved / Each Channel
- 54831D - 320 - 64M / 32M Memory Depth Interleaved / Each Channel
- 54831D - 640 - 128M / 64M Memory Depth Interleaved / Each Channel
| Model | 54831D |
|---|
The Keysight (Agilent) 54831D Mixed Signal Oscilloscope offers 4 analog input channels with 600 MHz bandwidth and 16 digital logic channels, supporting a 4 GSa/s sample rate. It features MegaZoom deep memory (up to 128 Mpts), AutoProbe interface, and a high-resolution 8.4-inch TFT color display. Key functions include segmented memory acquisition, QuickMeas+, FFT, autoscale, and built-in LAN, CD-ROM, and VoiceControl options.
Ideal for high-speed digital and communications analysis, this oscilloscope captures fast events at 250 ps with color persistence modes and drag-and-drop measurement tools. Waveforms and setups can be saved in ASCII formats for detailed evaluation and sharing.
Testwall can supply the used Keysight (Agilent) 54831D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54831D.
