Sorensen

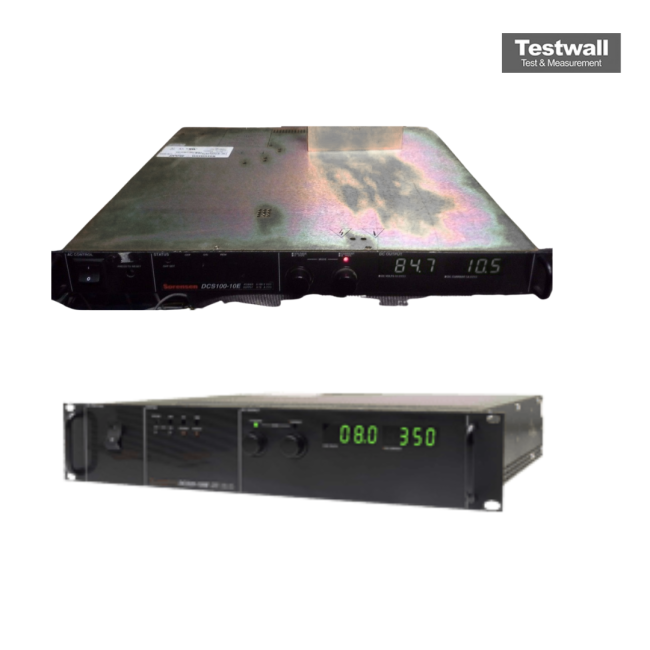

Sorensen DCS100-10E
100-10A DC Power Supply
0 – 100 VDC Output Voltage
0 – 10 A Output Current
1000 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 100 VDC |
| Output Current | 0 – 10 A |
| Output Power | 1000 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, rms) | 20 mV rms |
| Programming Interface | Analog (0–5 V or 0–10 V), RS-232/RS-485 optional |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen DCS100-10E Options:
- DCS100-10E - M1 - Factory configured for 115 VAC input (1 kW and 1.2 kW units only)
- DCS100-10E - M9C - Internal IEEE-488/RS 232 Interface (May not be combined with M51A or M85)
- DCS100-10E - M13 - Locking shafts (front panel potentiometers)
- DCS100-10E - M32 - Master/slave paralleling cable configured for two or more units
- DCS100-10E - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor and status outputs up to 500V relative to the supply's return line (May not be combined with M9C or M85)
- DCS100-10E - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector, 3 ft. connector included (May not be combined with M9C or M51A)
| Model | DCS100-10E |
|---|
The Sorensen DCS100-10e, 1 kW DC Programmable Switching Power Supply incorporates current Mode Switching rates up to 100 KHz in High Power density, low profile chassis.
