Sorensen

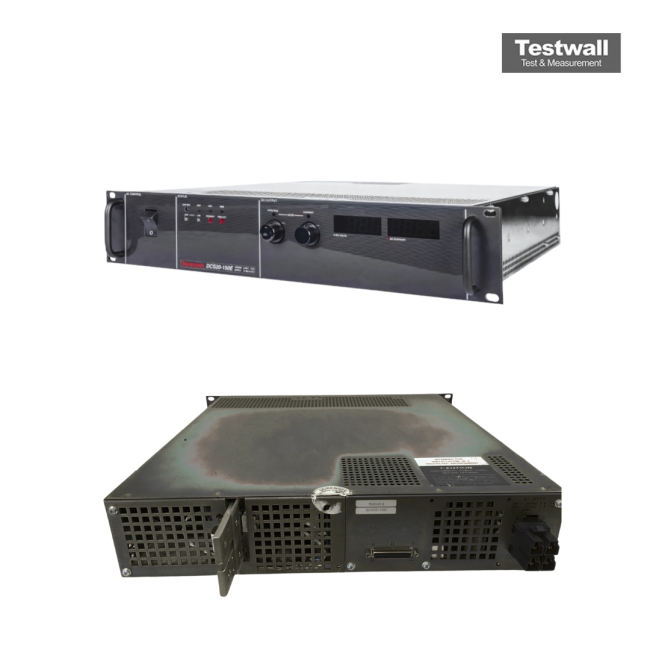

Sorensen DCS20-150
20-150 DC Power Supply
0 – 20 VDC Output Voltage
0 – 150 A Output Current
3000 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 20 VDC |
| Output Current | 0 – 150 A |
| Output Power | 3000 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 10 mV RMS |
| Programming Interface | 0–5 V or 0–10 V analog, RS-232/RS-485 optional |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCS20-150 Options:
- DCS20-150 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS20-150 - M9C - Internal IEEE-488/RS 232 Interface Card with voltage and current readback and adjustable OVP
- DCS20-150 - M13 - Locking shafts (front panel potentiometers)
- DCS20-150 - M32 - Master/slave paralleling cable configured for two or more units
- DCS20-150 - M33 - Replace input connector with terminal block (3 kW only)
- DCS20-150 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS20-150 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
- DCS20-150 - 105-330-26 - Rack slide kit (3 kW only)
| Model | DCS20-150 |
|---|
