Sorensen

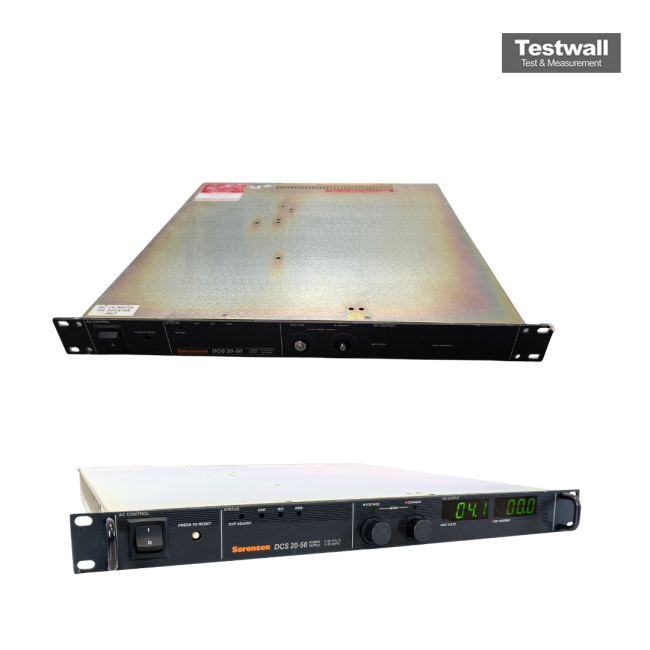

Sorensen DCS20-50
20-50 DC Power Supply
0 - 20 VDC Output Voltage
0 - 50 A Output Current
1000 W Output Power
105 - 132 VAC / 210 - 264 VAC, Single Phase, 47 - 63 Hz Input Voltage
0.01% + 2 mV (Voltage), 0.01% + 2 mA (Current) Line Regulation
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 20 VDC |
| Output Current | 0 - 50 A |
| Output Power | 1000 W |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, Single Phase, 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV (Voltage), 0.01% + 2 mA (Current) |
| Load Regulation | 0.01% + 2 mV (Voltage), 0.01% + 2 mA (Current) |
| Output Ripple & Noise | 20 mV RMS / 100 mV Peak-to-Peak (Voltage), 50 mA RMS (Current) |
| Programming Accuracy | 0.1% + 20 mV (Voltage), 0.2% + 100 mA (Current) |
| Operating Temperature | 0°C to 50°C |
| Form Factor / Dimensions | Rack Mount, 3U, 19-inch rack compatible |
Sorensen DCS20-50 Options:
- DCS20-50 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS20-50 - M9C - Internal IEEE-488/RS 232 Interface
- DCS20-50 - M13 - Locking shafts (front panel potentiometers)
- DCS20-50 - M32 - Master/slave paralleling cable configured for two units
- DCS20-50 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS20-50 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
| Model | DCS20-50 |
|---|
