Sorensen

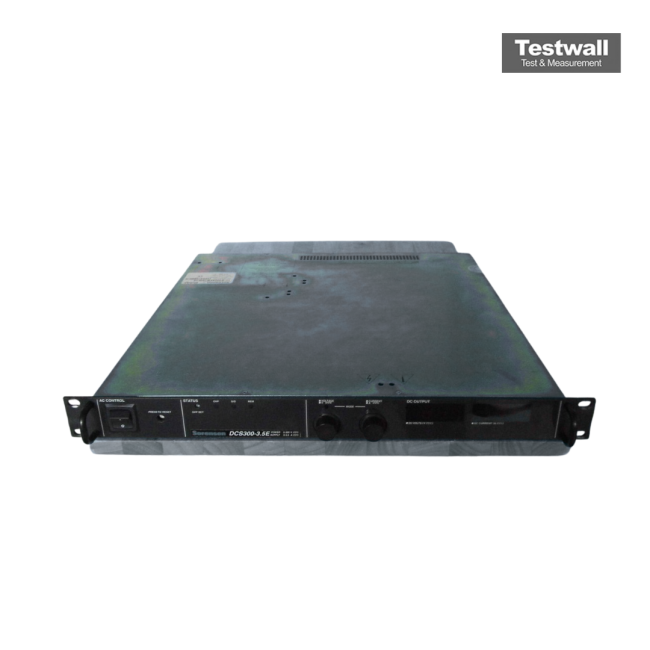

Sorensen DCS300-3.5E
300-3.5A DC Power Supply
0 - 300 VDC Output Voltage
0 - 3.5 A Output Current
1050 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 300 VDC |
| Output Current | 0 - 3.5 A |
| Output Power | 1050 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Programming Interface | Analog, RS-232, GPIB (optional), Ethernet (optional) |
| Form Factor | Rackmount, 3U |
| Model | DCS300-3.5E |
|---|
Sorensen DCS300-3.5E Programmable Power Supply incorporates current Mode Switching rates up to 100 KHz in Higher Power density, low profile packages. It provides 0-300 Volts, 0 to 3.5 Amps, 0.1% line and load regulation
