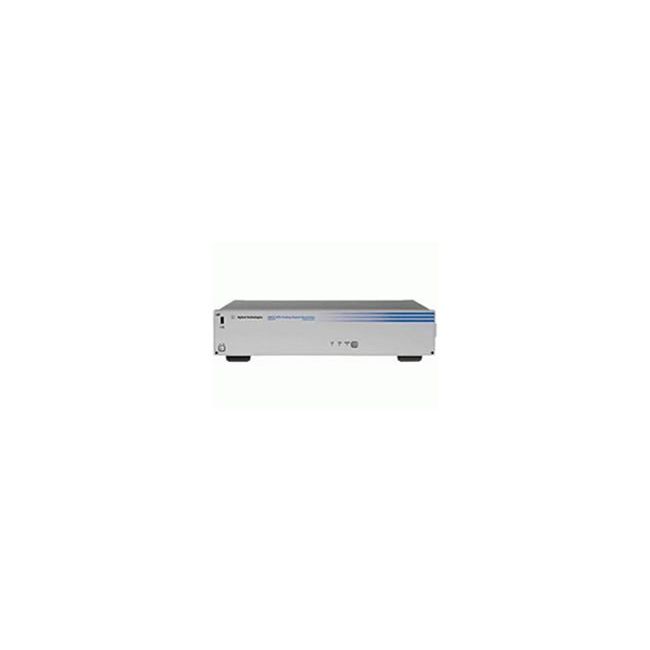

Keysight (Agilent) N5161A
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.01 Hz |
| Sweep Modes | step sweep, list mode |
| RF Output Connector | Type-N female |
| Interfaces | GPIB, LAN (LXI), USB |
| Frequency Range | 100 kHz to 3 or 6 GHz; spec. from 250 kHz |
| Output Power | -127 to +13 dBm to 4.5 GHz, +7 dBm to 6 GHz |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Display | without (ATE version, no front panel display) |
Available configurations
| Model | Frequency range | Configuration |
| N5161A-503 | 100 kHz to 3 GHz | Analog signal generator |
| N5161A-506 | 100 kHz to 6 GHz | Analog signal generator |
Keysight (Agilent) N5161A Options:
Options available for the Keysight (Agilent) MXG analog signal generator (N5181A). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- N5161A - 501 - Frequency range 100 kHz to 1 GHz
- N5161A - 503 - Frequency range 100 kHz to 3 GHz
- N5161A - 506 - Frequency range 100 kHz to 6 GHz
- N5161A - UNT - AM, FM and phase modulation
- N5161A - UNU - Pulse modulation
- N5161A - UNW - Narrow pulse modulation
- N5161A - 1EA - High output power
- N5161A - 1EQ - Low output power (step attenuator)
- N5161A - UNZ - Fast switching
- N5161A - 1ER - Flexible reference input
- N5161A - 1EM - RF output moved to rear panel
- N5161A - 006 - Instrument security
- N5161A - 1CM - Rack mount kit
- N5161A - 1CN - Front handle kit
- N5161A - 1CP - Rack mount kit with handles
The Keysight (Agilent) N5161A MXG ATE RF Signal Generator delivers top-tier RF performance in a compact 2RU form, tailored for high-volume, cost-sensitive ATE environments. It features AM, FM, ØM, and pulse modulation, as well as digital step and list sweep capabilities with full signal switching. Rear-panel connections and no front display streamline integration in automated test racks, ensuring reliability and optimal rack space usage.
Supporting 100BaseT LAN, USB 2.0, GPIB, SCPI, and IVI-COM, and LXI class-B compliance, it’s compatible with ESG, PSG, and other legacy generators.
Testwall can supply the used Keysight (Agilent) N5161A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5161A.
Options and configurations
- Frequency Range: 100 kHz to 3 or 6 GHz (Opt. 503/506); spec. from 250 kHz
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW)
