Sorensen

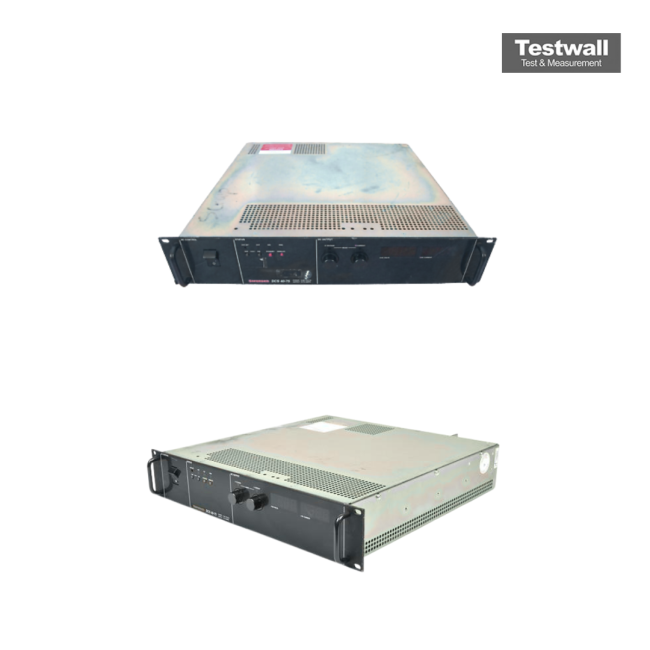

Sorensen DCS40-75
40-75 DC Power Supply
0 - 40 VDC Output Voltage
0 - 75 A Output Current
3000 W Output Power
105 - 132 VAC / 210 - 264 VAC, Single Phase, 47 - 63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 VDC |
| Output Current | 0 - 75 A |
| Output Power | 3000 W |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, Single Phase, 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 10 mV RMS |
| Programming Accuracy (Voltage) | 0.1% + 20 mV |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCS40-75 Options:
- DCS40-75 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS40-75 - M9C - Internal IEEE-488/RS 232 Interface
- DCS40-75 - M13 - Locking shafts (front panel potentiometers)
- DCS40-75 - M32 - Master/slave paralleling cable configured for two units
- DCS40-75 - M33 - Replace input connector with terminal block (3 kW only)
- DCS40-75 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS40-75 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
- DCS40-75 - 105-330-26 - Rack slide kit (3 kW only)
| Model | DCS40-75 |
|---|
Sorensen DCS40-75 Power Supply is a 3000W Supply designed to provide Highly stable, continuously variable Output Voltage and current for a broad range of development, System and burn-in applications.
