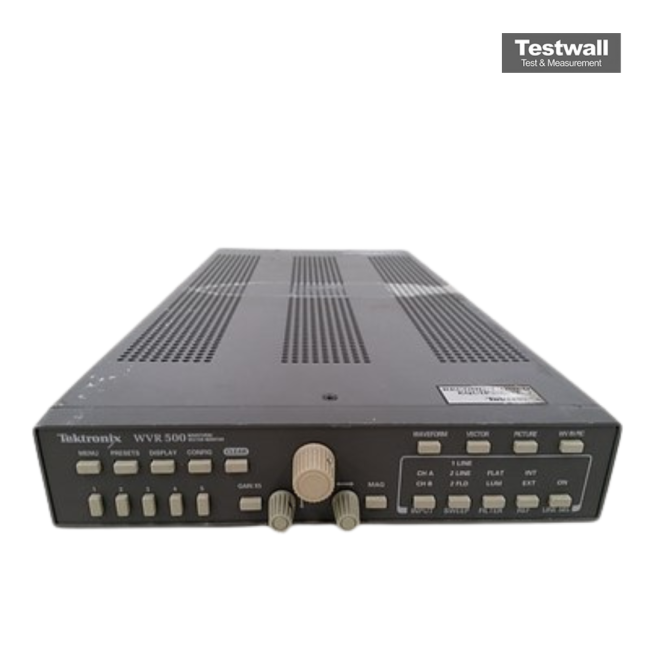

Tektronix WVR500
| Attribute | Value |
|---|---|
| Form Factor | Half-rack, 1RU portable waveform monitor |
| Display | Built-in 5.7-inch color LCD display |
| Signal Standards Supported | SD (Standard Definition) video signals including NTSC and PAL |
| Input Connectors | Two SD-SDI inputs (BNC connectors) |
| Audio Monitoring | Supports embedded audio monitoring with Lissajous and level displays |
| Waveform Display Modes | Waveform, vector, parade, and picture monitoring modes |
| Gamut Monitoring | Diamond and split diamond gamut display for out-of-gamut detection |
| Power Consumption | Approximately 30 watts maximum |
| Power Input | 100–240 VAC, 50/60 Hz universal power supply |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | WVR500 |
|---|
The Tektronix WVR500 is a compact 1U half-rack waveform/vector/picture rasterizing monitor designed for NTSC and PAL systems. It supports external display output and features dual composite BNC video inputs/outputs with loop-through. High fidelity analog performance includes flat 6 MHz response, low overshoot, and accurate amplitude/phase rendering. Electronically generated graticules provide stable, clear raster overlays. Operators benefit from front-panel controls, RS-232 remote access, alarm thresholds, and event logging.
Ideal for broadcast environments, it integrates seamlessly into signal chains even when powered down and ensures real-time waveform/vector/picture analysis with superb analog fidelity and stability.
Testwall can supply the used Tektronix WVR500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WVR500.
