Sorensen DCS80-15E
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 VDC |
| Output Current | 0 – 15 A |
| Output Power | 1200 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, rms) | 1 mV rms typical |
| Programming Interface | Analog (0–5 V or 0–10 V), RS-232/RS-485 optional, GPIB optional |
| Operating Temperature | 0°C to 50°C |
| Form Factor / Dimensions | Rack mountable, 3U (5.25" H × 19" W) |
Sorensen DCS80-15E Options:
- DCS80-15E - M1 - Factory configured for 115 VAC input (1 kW and 1.2 kW units only)
- DCS80-15E - M9C - Internal IEEE-488/RS-232 Interface (can only support 12-bit slaves)
- DCS80-15E - M13 - Locking shafts (front panel potentiometers)
- DCS80-15E - M32 - Master/slave paralleling cable configured for two units
- DCS80-15E - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS80-15E - M85 - 12-bit slave interface option for use with M9 or M130 master (3 ft. control cable included)
- DCS80-15E - M102 - Front panel binding posts for 1 kW or 1.2 kW, Models ≤30A, ≤100V. Not compatible with M9C, M85, M130, M131, M133, M135, M136
- DCS80-15E - M130 - LXI compliant 10/100 Base T Ethernet remote control master interface; includes web server for direct control of power supply via web browser (MS Internet Explorer 6.0 or later)
- DCS80-15E - M131 - 16-bit slave interface option for use with a M130 master (3 ft. control cable included)
- DCS80-15E - M133 - Output disconnect and polarity reversal relays controlled via SCPI commands. Limited to 1kW or 1.2 kW, ≤100V, ≤60A
- DCS80-15E - M135 - M130 & M133 combination. Limited to 1kW or 1.2 kW, ≤100V, ≤60A
- DCS80-15E - M136 - M131 & M133 combination. Limited to 1kW or 1.2 kW, ≤100V, ≤60A
| Model | DCS80-15E |
|---|

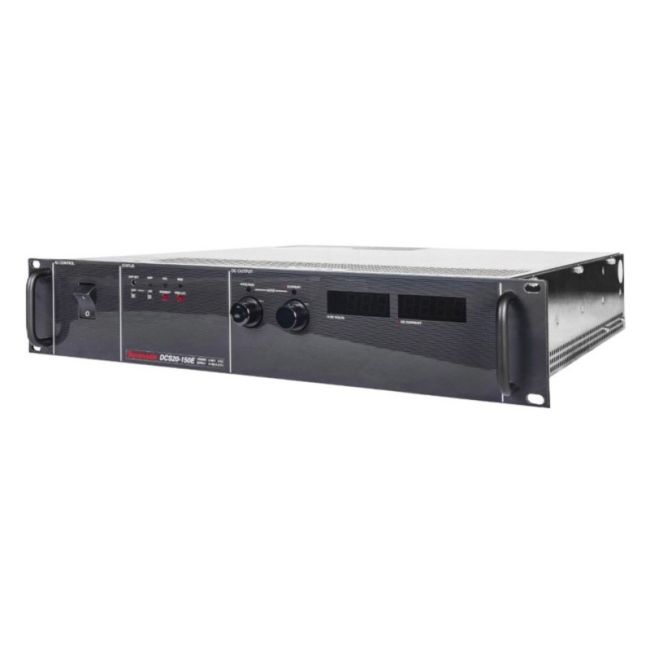

SORENSEN DCS80-15E Programmable DC Power Supply
The SORENSEN DCS80-15E Programmable DC Power Supply is a 1.2kW programmable power supply which is ideally suited for a wide range of applications requiring DC power in a small form factor. Applications range from manufacturing test and burn-in of automotive components, avionics electronics, telecommunications and consumer products to beam steering, process control and laboratory R&D use. The DCS80-15E programmable power supply utilizes switchmode technology to achieve high power density in a low profile chassis.
The SORENSEN DCS80-15E Programmable DC Power Supply includes a user-friendly platform that can be controlled from the front panel with 10-turn potentiometers to adjust voltage, cur and OVP settings. With the 16-bit resolution of the Ethernet programming and hardware triggering allows for detailed sequencing associated with battery fluctuation simulation. The tight load regulation capability included in the DCS80-15E power supply makes it a superior source for validation and acceptance testing and burn-in of automotive components. Margin testing of 12V and 14V nominal components, such as electronic control units (ECU) and electromechanical components, is easily achieved. The DCS80-15E power supply also provides a high accuracy voltage output to optimize battery charging.
Specifications for the SORENSEN DCS80-15E Programmable DC Power Supply Include:
| Voltage | 0-80 V |
| Current | 0-15 A |
| Power | 1,200 W |
| Efficiency % (Typ.) | 85 |
