Sorensen

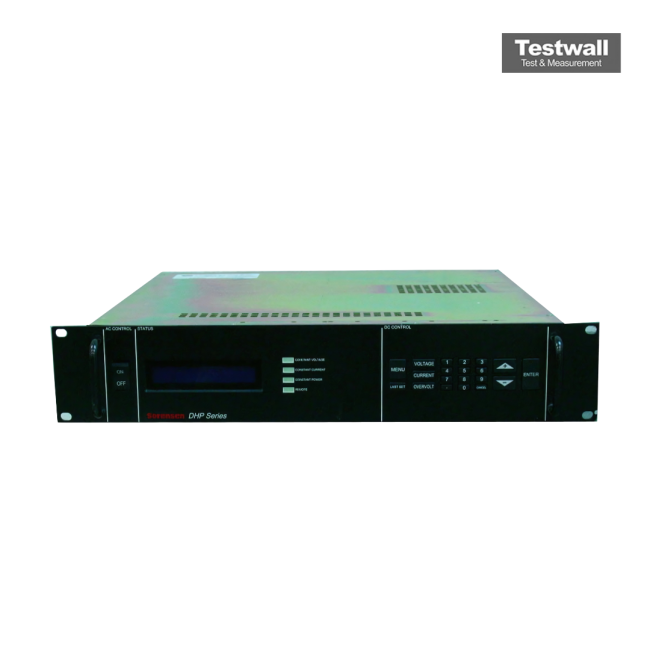

Sorensen DHP30-66
30-66 DC Power Supply
0 - 30 VDC Output Voltage
0 - 66 A Output Current
2000 W Output Power
105 - 132 VAC / 210 - 264 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 30 VDC |
| Output Current | 0 - 66 A |
| Output Power | 2000 W |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 1 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Interface / Programming | Analog Programming, Isolated Analog Interface |
Sorensen DHP30-66 Options:
- DHP30-66 - Three-phase input - Three, 3-wire plus ground (optional) input phase configuration
- DHP30-66 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP30-66 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP30-66 |
|---|
The Sorensen DHP30-66 is a DC Power Supply.
