Sorensen

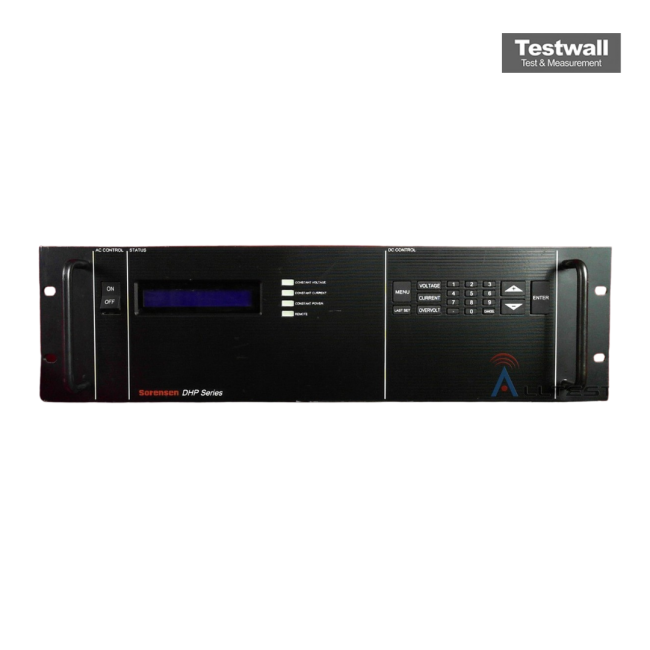

Sorensen DHP300-33
300-33 DC Power Supply
0 - 300 V Output Voltage
0 - 33 A Output Current
10,000 W (10 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
0.01% of full scale Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 300 V |
| Output Current | 0 - 33 A |
| Output Power | 10,000 W (10 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Line Regulation (Voltage) | 0.01% of full scale |
| Load Regulation (Voltage) | 0.01% of full scale |
| Ripple and Noise (Voltage) | 75 mV RMS / 300 mV peak-to-peak |
| Programming Accuracy (Voltage) | 0.1% of full scale |
| Operating Temperature | 0°C to 50°C |
| Interface / Control | Analog programming, RS-232, GPIB (optional), isolated analog |
Sorensen DHP300-33 Options:
- DHP300-33 - Three, 3-wire plus ground - Three-phase input option (2 kW to 3 kW series)
- DHP300-33 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP300-33 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP300-33 |
|---|
