Sorensen

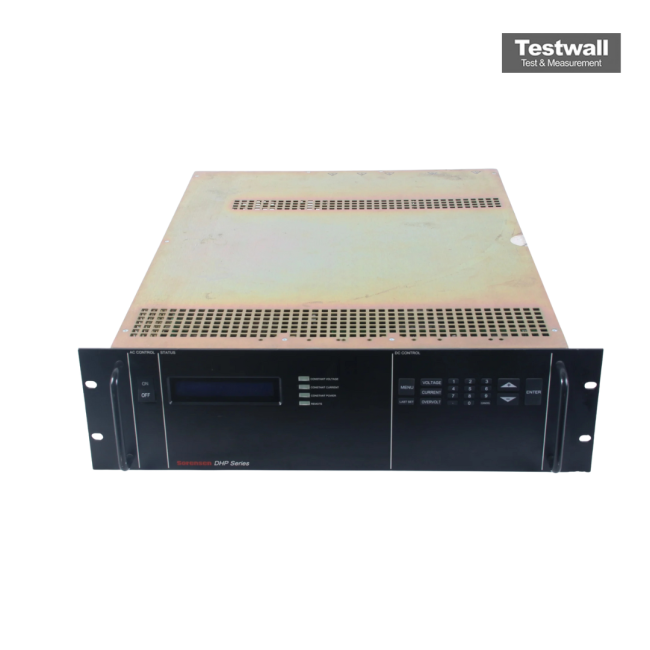

Sorensen DHP50-40
50-40 DC Power Supply
0 - 50 VDC Output Voltage
0 - 40 A Output Current
2000 W Output Power
105 - 132 VAC / 210 - 264 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 50 VDC |
| Output Current | 0 - 40 A |
| Output Power | 2000 W |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, RMS) | 1 mV RMS |
| Programming Interface | Analog (0 - 5 VDC or 0 - 10 VDC), Isolated RS-232/RS-485 Optional |
| Operating Temperature | 0°C to 50°C |
Sorensen DHP50-40 Options:
- DHP50-40 - Three, 3-wire plus ground - Three-phase input option (2 kW to 3 kW series)
- DHP50-40 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP50-40 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP50-40 |
|---|
