Sorensen

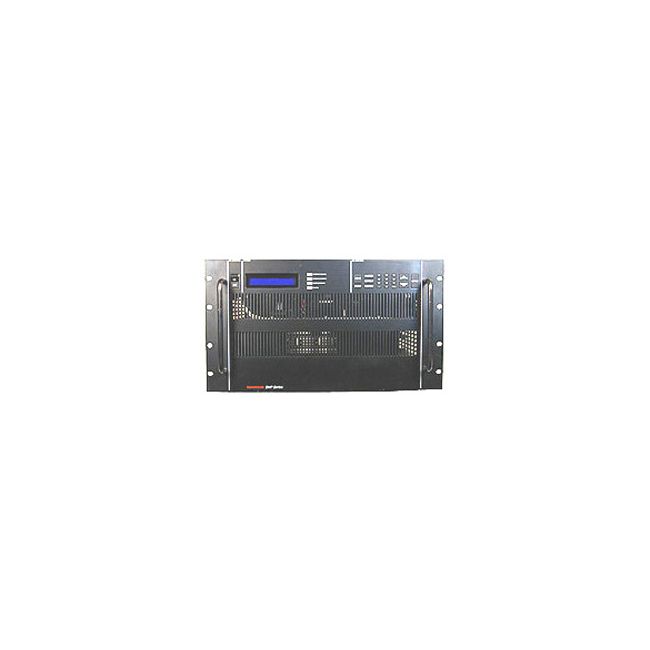

Sorensen DHP80-375
80-375 DC Power Supply
0 - 80 V Output Voltage
0 - 375 A Output Current
30,000 W (30 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 80 V |
| Output Current | 0 - 375 A |
| Output Power | 30,000 W (30 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Voltage Regulation (Load) | 0.05% of full scale output |
| Current Regulation (Load) | 0.1% of full scale output |
| Output Ripple & Noise (Voltage) | 0.1% RMS / 0.5% peak-to-peak of full scale |
| Operating Temperature | 0°C to 50°C |
| Interface / Programming | Analog programming, RS-232, GPIB (IEEE-488) optional |
Sorensen DHP80-375 Options:
- DHP80-375 - Option - Three, 3-wire plus ground (3-phase input power)
- DHP80-375 - Option - 400 VAC input (tested to 360-440 VAC)
- DHP80-375 - Option - 480 VAC input (tested to 432-528 VAC)
| Model | DHP80-375 |
|---|
Output: 0-80Vdc 0-375 Amp
Ripple: 15mV (typical)
Regulation (Line or Load)
Voltage: 0.1% of maximum rated output
Current: 0.5% of maximum rated output
Transient Response: 2 ms to steady state output voltage (within 2% of Vmax) for 30% step load change (slower response in paralleled systems)
Stability: ?0.05% maximum rating per 8 hours after a 30 minute warm-up time at fixed line, load and temperature
Efficiency: 80% minimum at full load
Temperature Coefficient: 0.02%/?C of rated output voltage; 0.03%/?C of rated output current
Input:
190-253 VAC, 47-63 Hz, three phase, 3-wire plus ground, Delta or Wye input may be used (Wye does not require the neutral connection)
Operating Temperature: 0?C to +50?C, no derating
Storage Temperature: -20?C to 70?C
Cooling: Internal fan
