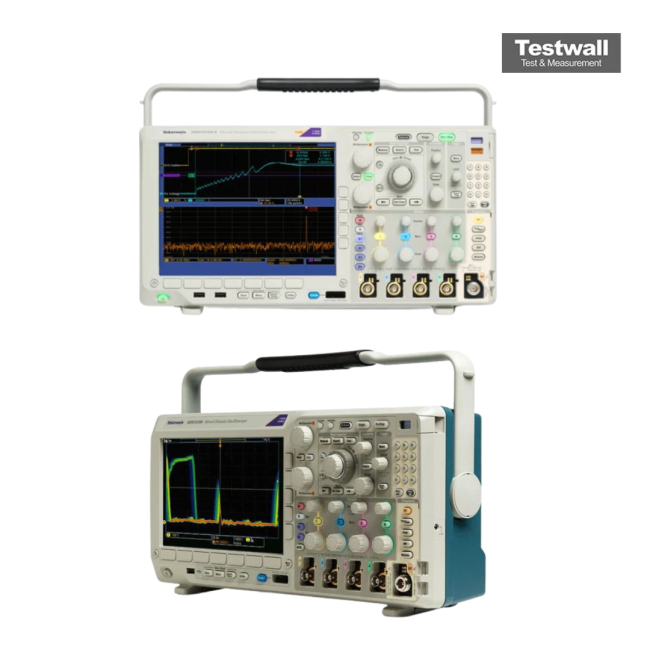

Tektronix MDO4000C
Mixed Domain Oscilloscope, 200 MHz - 1 GHz BW, 4+16 CH
200 MHz to 1 GHz (upgradeable) Bandwidth
4 Analog Channels
Up to 5 GS/s Sample Rate
Up to 20 M points Record Length
9 kHz to 3 GHz (RF channel) Integrated Spectrum Analyzer Frequency Range
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz to 1 GHz (upgradeable) |
| Analog Channels | 4 |
| Sample Rate | Up to 5 GS/s |
| Record Length | Up to 20 M points |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz (RF channel) |
| Digital Channels | 16 (with optional logic analyzer module) |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Display | 10.4-inch WVGA color display |
| Serial Bus Analysis | Supports I2C, SPI, RS-232/422/485/UART, USB, CAN, LIN, FlexRay, MIL-STD-1553, and more |
| Connectivity | USB Host and Device ports, LAN (LXI), HDMI video output |
Tektronix MDO4000C Options:
- MDO4000C - MDO4AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO4000C - MDO4MSO - 16 digital channels; includes P6616 digital probe and accessories
- MDO4000C - SA3 - Integrated spectrum analyzer with frequency range of 9 kHz to 3 GHz
- MDO4000C - SA6 - Integrated spectrum analyzer with frequency range of 9 kHz to 6 GHz
- MDO4000C - MDO4SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO4000C - A0 - North America power plug (115 V, 60 Hz)
- MDO4000C - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4000C - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4000C - A3 - Australia power plug (240 V, 50 Hz)
- MDO4000C - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4000C - A6 - Japan power plug (100 V, 50/60 Hz)
- MDO4000C - A10 - China power plug (50 Hz)
- MDO4000C - A11 - India power plug (50 Hz)
- MDO4000C - A12 - Brazil power plug (60 Hz)
- MDO4000C - A99 - No power cord
- MDO4000C - L0 - English front panel label
- MDO4000C - L1 - French front panel overlay
- MDO4000C - L2 - Italian front panel overlay
- MDO4000C - L3 - German front panel overlay
- MDO4000C - L4 - Spanish front panel overlay
- MDO4000C - L5 - Japanese front panel overlay
- MDO4000C - L6 - Portuguese front panel overlay
- MDO4000C - L7 - Simplified Chinese front panel overlay
- MDO4000C - L8 - Traditional Chinese front panel overlay
- MDO4000C - L9 - Korean front panel overlay
- MDO4000C - L10 - Russian front panel overlay
- MDO4000C - C3 - Calibration Service 3 Years
- MDO4000C - C5 - Calibration Service 5 Years
- MDO4000C - D1 - Calibration Data Report
- MDO4000C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4000C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4000C - R5 - Repair Service 5 Years (including warranty)
- MDO4000C - T3 - Three year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4000C - T5 - Five year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4000C - MDO4SA3 - Add integrated spectrum analyzer with input frequency range of 9 kHz – 3 GHz (post-purchase upgrade)
- MDO4000C - MDO4SA6 - Add integrated spectrum analyzer with input frequency range of 9 kHz – 6 GHz (post-purchase upgrade)
- MDO4000C - MDO4SA3T6 - 3 GHz to 6 GHz spectrum analyzer upgrade for MDO4000C
- MDO4000C - MDO4BW2T34 - Bandwidth upgrade 200 MHz to 350 MHz (no spectrum analyzer)
- MDO4000C - MDO4BW2T54 - Bandwidth upgrade 200 MHz to 500 MHz (no spectrum analyzer)
- MDO4000C - MDO4BW2T104 - Bandwidth upgrade 200 MHz to 1 GHz (no spectrum analyzer)
- MDO4000C - MDO4BW3T54 - Bandwidth upgrade 350 MHz to 500 MHz (no spectrum analyzer)
- MDO4000C - MDO4BW3T104 - Bandwidth upgrade 350 MHz to 1 GHz (no spectrum analyzer)
- MDO4000C - MDO4BW5T104 - Bandwidth upgrade 500 MHz to 1 GHz (no spectrum analyzer)
- MDO4000C - MDO4BW2T34-SA - Bandwidth upgrade 200 MHz to 350 MHz (with spectrum analyzer)
- MDO4000C - MDO4BW2T54-SA - Bandwidth upgrade 200 MHz to 500 MHz (with spectrum analyzer)
- MDO4000C - MDO4BW2T104-SA - Bandwidth upgrade 200 MHz to 1 GHz (with spectrum analyzer)
- MDO4000C - MDO4BW3T54-SA - Bandwidth upgrade 350 MHz to 500 MHz (with spectrum analyzer)
- MDO4000C - MDO4BW3T104-SA - Bandwidth upgrade 350 MHz to 1 GHz (with spectrum analyzer)
- MDO4000C - MDO4BW5T104-SA - Bandwidth upgrade 500 MHz to 1 GHz (with spectrum analyzer)
| Model | MDO4000C |
|---|
The Tektronix MDO4000C is a pioneering Mixed Domain Oscilloscope combining analog, digital, and RF signal analysis in one tool. It enables synchronized time and frequency domain measurements with real-time insight across embedded, RF, and wireless systems.
Ideal for engineers dealing with modern embedded designs integrating wireless technologies. Provides vector signal analysis, serial bus decoding, and seamless correlation of RF events with digital and analog signals.
Testwall can supply the used Tektronix MDO4000C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4000C.
