Sorensen

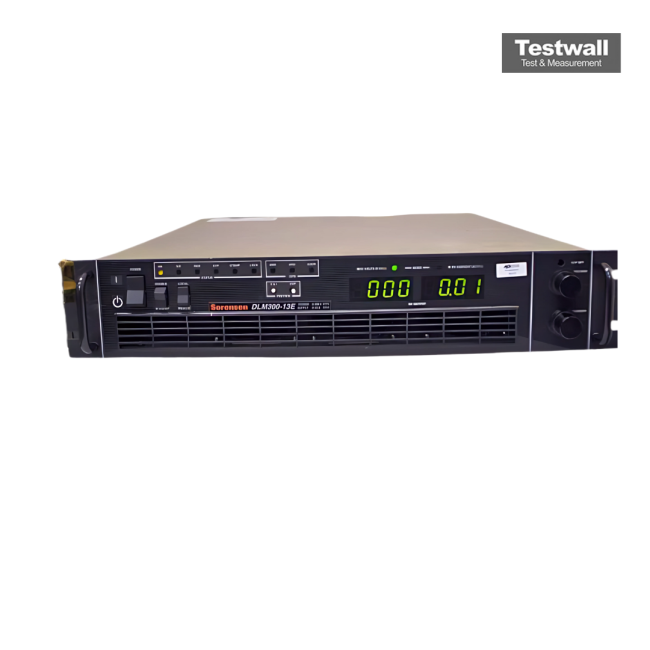

Sorensen DLM300-13E
The Sorensen DLM300-13E is a DC Power Supply.
0 - 300 VDC Output Voltage
0 - 13 A Output Current
3900 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 300 VDC |
| Output Current | 0 - 13 A |
| Output Power | 3900 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise | 15 mV RMS / 75 mV Peak-to-Peak |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DLM300-13E Options:
- DLM300-13E - M9E - IEEE-488.2 Interface Option (includes error, SRQ and address indicators)
- DLM300-13E - M85 - LabVIEW Driver Option
| Model | DLM300-13E |
|---|
The Sorensen DLM300-13E is a DC Power Supply.
