Sorensen

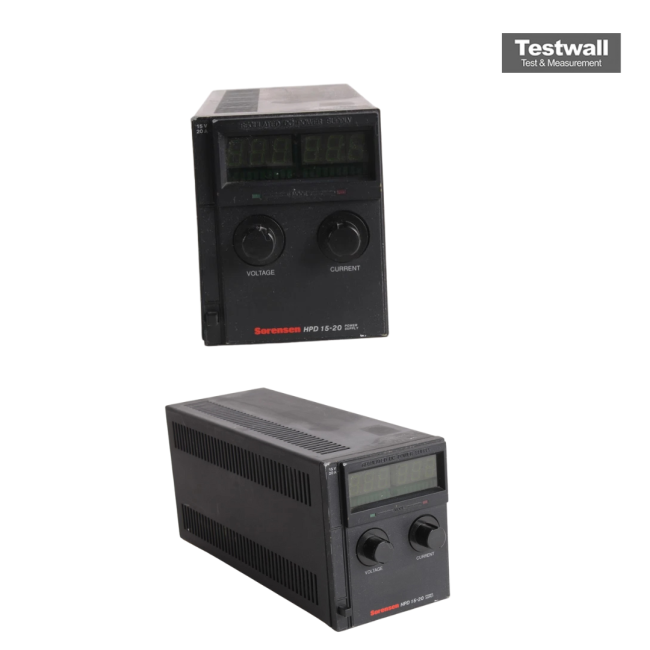

Sorensen HPD15-20
0 - 15 VDC Output Voltage
0 - 20 A Output Current
300 W Output Power
105 - 125 VAC / 210 - 250 VAC, 50/60 Hz Input Voltage
0.01% + 2 mV Load Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 15 VDC |
| Output Current | 0 - 20 A |
| Output Power | 300 W |
| Input Voltage | 105 - 125 VAC / 210 - 250 VAC, 50/60 Hz |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.1% + 3 mA |
| Ripple and Noise (Voltage) | 1 mV RMS |
| Ripple and Noise (Current) | 3 mA RMS |
| Output Terminals | Binding Posts |
| Form Factor | Rack Mountable, 3U |
Sorensen HPD15-20 Options:
- HPD15-20 - M2 - Input Voltage: 200-250 VAC, single phase, 47-63 Hz
- HPD15-20 - M5A - Analog Programming: Internal interface for full scale remote programming of output voltage and/or current by a 0-10V or 0-10 kΩ external source connected at the rear panel. Includes 0-10V readback, externally adjustable overvoltage protection (OVP), TTL shutdown with selectable logic, master/slave tracking and status signals for programming mode, operating mode, OVP and output fail flag (May not be combined with M9B)
- HPD15-20 - M9B - Internal IEEE-488 Interface: Features complete remote programming, including status reporting, settings query and interrupt generation with user-designated fault conditions. Both the voltage and current output are precisely programmed directly in volts and amps (May not be combined with M5A)
- HPD15-20 - M11 - 10-turn current control potentiometer
- HPD15-20 - M13 - Locking shafts (front panel potentiometers)
- HPD15-20 - M15 - Front panel binding posts
- HPD15-20 - M18 - Carrying handle
- HPD15-20 - RM-XHS - Rack Adapter Kit
| Model | HPD15-20 |
|---|
