Sorensen

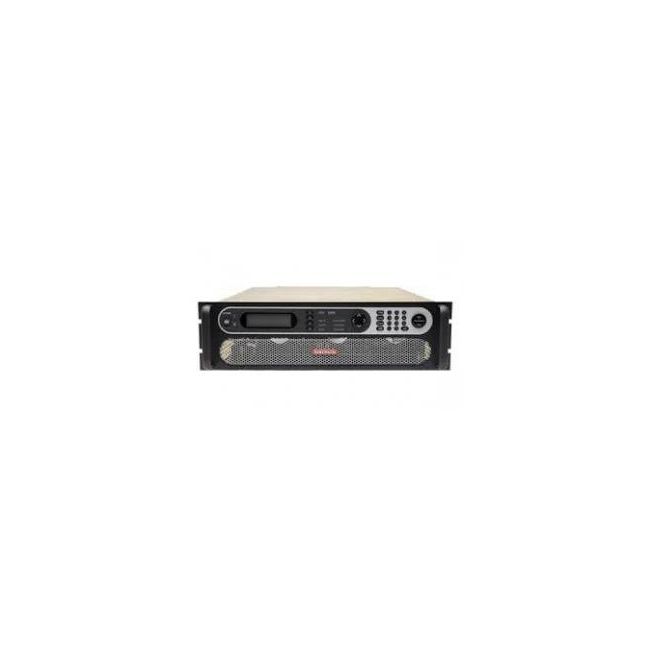

Sorensen SGA60-165
DC Power Supply, 60V, 165A, 10kW
0 - 60 VDC Output Voltage
0 - 165 A Output Current
9,900 W (9.9 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 VDC |
| Output Current | 0 - 165 A |
| Output Power | 9,900 W (9.9 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.02% of full scale output |
| Load Regulation | 0.02% of full scale output |
| Programming Interface | Analog (0-5V or 0-10V), RS-232/RS-485 optional |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Sorensen SGA60-165 Options:
- SGA60-165 - A - Control Option: Analog
- SGA60-165 - I - Control Option: Intelligent
- SGA60-165 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGA60-165 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGA60-165 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGA60-165 - 0A - Remote Control: No Option
- SGA60-165 - 1A - Remote Control: IEEE-488.2 + RS-232C
- SGA60-165 - 1C - Remote Control: Ethernet + RS-232C
- SGA60-165 - 1D - Remote Control: Isolated Analog Control
- SGA60-165 - 1E - Remote Control: Shaft Locks (SGA series only)
- SGA60-165 - 2A - Remote Control: Combined Options 1A+1D
- SGA60-165 - 2C - Remote Control: Combined Options 1A+1E (SGA Only)
- SGA60-165 - 2G - Remote Control: Combined Options 1C+1D
- SGA60-165 - 2H - Remote Control: Combined Options 1C+1E (SGA Only)
- SGA60-165 - 2J - Remote Control: Combined Options 1D+1E (SGA Only)
- SGA60-165 - 3C - Remote Control: Combined Options 1A+1D+1E (SGA Only)
- SGA60-165 - 3G - Remote Control: Combined Options 1C+1D+1E (SGA Only)
- SGA60-165 - AA - Process Option: No Option
- SGA60-165 - AB - Process Option: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGA60-165 - AJ - Modification: Front panel dust filter - factory installed - 3U unit only
- SGA60-165 - CV - Modification: 400Hz AC input @ 208 VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGA60-165 - PF - Modification: Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V)
- SGA60-165 - R - RoHS Compliant Version
- SGA60-165 - 890-453-03 - Accessory: Paralleling Cable (for up to 5 units, requires one cable per unit placed in parallel)
- SGA60-165 - K550212-01 - Accessory: 3U Rack Slides (for 5kW, 10kW and 15kW models)
- SGA60-165 - K550213-01 - Accessory: 6U Rack Slides (for 20kW, 25kW and 30kW models)
- SGA60-165 - K550532-01 - Accessory: Front panel dust filter - field installation kit - 3U unit only
- SGA60-165 - 5551082-01 - Accessory: Optional AC input cover kit - 3U unit only
| Model | SGA60-165 |
|---|
SORENSEN SGA60-165 DC Power Supply The Sorensen SGA60-165 represents the next generation of high power programmable DC power supplies. It is designed for exceptional load transient response, low noise and the highest power density in the industry. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. At the heart of the SG series is a 5 kW power module. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system cur.SGA: Outstanding Value - Analog Control (Sorensen General purpose Analog)The Sorensen SGA60-165, with its industry leading performance, is available for customers requiring simple front panel analog controls or external control. With the same high performance power electronics as the SGI, the SGA provides essential features like 10- turn potentiometers for setting voltage and cur, 3 ½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset. Specifications for the SORENSEN SGA60-165 DC Power Supply Include:
