Sorensen XG20-76
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 20 V |
| Output Current | 0 – 76 A |
| Output Power | 1520 W |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Line Regulation (Current) | 0.01% + 1 mA |
| Load Regulation (Current) | 0.01% + 1 mA |
| Input Voltage | 105–132 VAC / 210–264 VAC, 47–63 Hz, Single Phase |
| Programming Interface | Analog (0–5 V or 0–10 V), RS-232, GPIB (optional), Ethernet (optional) |
| Operating Temperature | 0°C to 50°C |
Sorensen XG20-76 Options:
- XG20-76 - MEB - LXI Class C ETHERNET
- XG20-76 - MGA - GPIB, IEEE 488.2
- XG20-76 - MIA - Isolated Analog Interface
- XG20-76 - RM-XG1 - Rackmount Angle Brackets
| Model | XG20-76 |
|---|

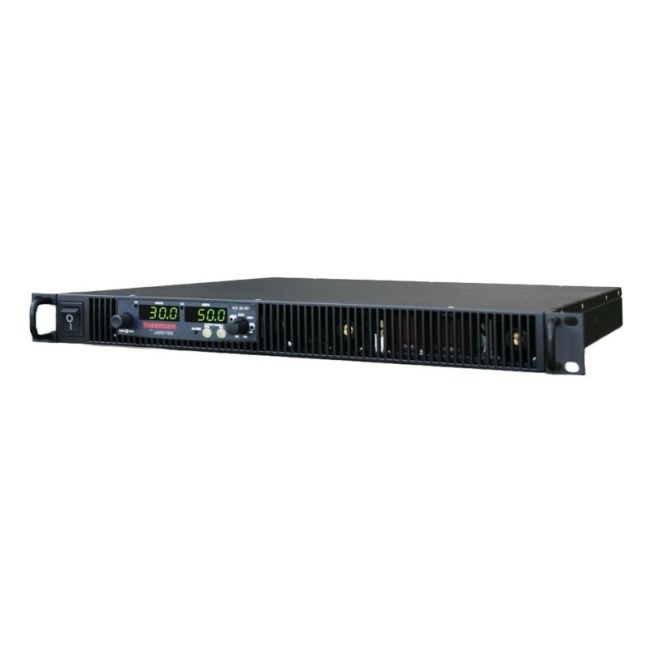

SORENSEN XG20-76 DC Power Supply
The Sorensen XG20-76 DC Power Supply is an industry leading programmable DC power supply designed for test, production, laboratory, OEM and quality assurance applications. This is a 1500 Watt, 1U programmable power supply with constant voltage and constant cur modes, automatic cross-over and numerous features enabling cost effective, easy integration. The XG20-76 DC Power Supply puts clean, reliable power at your disposal and delivers stable, variable output voltage and cur for a broad range of development, test and system requirements with high accuracy and greater efficiency.
With the Sorensen XG20-76 DC Power Supply, the analog control range is free selectable starting at 0V to an upper range between 2V and 10V. In other words, the analog programming interface range is freely adjustable. The XG20-76 DC Power Supply provides two standard auxiliary DC output channels. Both auxiliary power channels are controllable directly from the front-panel or through SCPI commands. To allow for extremely fast programming, sequences can be programmed into and stored in memory using standard SCPI commands through USB, RS-232/485, LXI or GPIB. The XG20-76 DC Power Supply is integrated with variable fan speed mode and sleep mode when the device is in idle state which saves energy and reduce lab noise.
Specifications for the SORENSEN XG20-76 DC Power Supply Include:
| Output Voltage | 20 V |
| Output Current | 76 A |
| Output Power | 1520 KW |
| Efficiency | 82/85 % |
