Sorensen

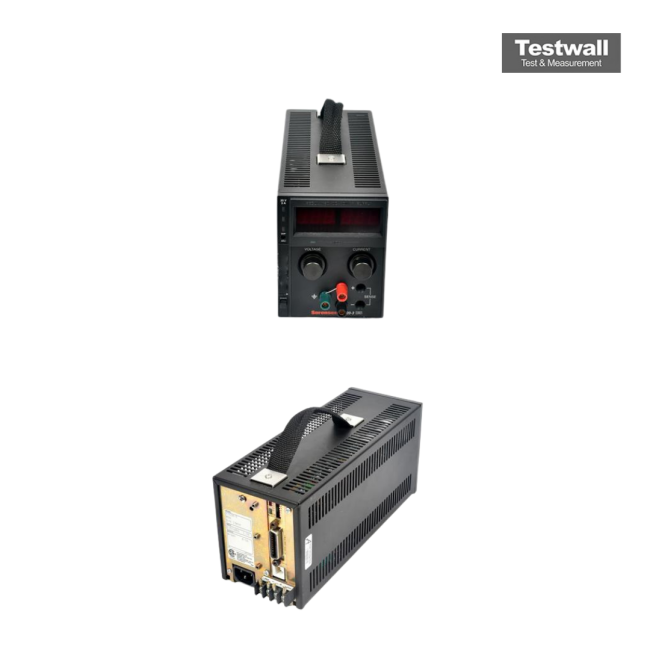

Sorensen XT20-3
Programmable DC Power Supply
0 - 20 VDC Output Voltage
0 - 3 A Output Current
60 W Output Power
0.01% + 2 mV Line Regulation (Voltage)
0.01% + 2 mV Load Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 20 VDC |
| Output Current | 0 - 3 A |
| Output Power | 60 W |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 1 mV RMS |
| Input Voltage | 105 - 125 VAC / 210 - 250 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Remote Sensing | Yes |
| Dimensions (H x W x D) | 3.5 in x 8.6 in x 14.6 in |
Sorensen XT20-3 Options:
- XT20-3 - M1 - Power Input Modification: 110V ±10%, 47-63 Hz
- XT20-3 - M2 - Power Input Modification: 220V ±10%, 47-63 Hz
- XT20-3 - M3 - Power Input Modification: 230V ±10%, 47-63 Hz
- XT20-3 - M4 - Power Input Modification: 240V ±10%, 47-63 Hz
- XT20-3 - M5A - Analog Programming: Internal interface for full scale remote programming of output voltage and/or current by a 0-10V or 0-10 kΩ external source; includes 0-10V readback, externally adjustable offset and range, front panel adjustable OVP, TTL shutdown with selectable logic, master/slave tracking and status signals (may not be combined with M9B)
- XT20-3 - M9B - Internal IEEE-488 Interface: Complete remote programming including status reporting, settings query and interrupt generation; voltage and current output precisely programmed directly in volts and amps (may not be combined with M5A)
- XT20-3 - M11 - 10-turn current control potentiometer
- XT20-3 - M13 - Locking shafts (front panel potentiometer)
- XT20-3 - RM-XHS - Rack Adapter Kit
| Model | XT20-3 |
|---|
