Spirent
Spirent LAN-3100A
Ethernet Module
10/100/1000 Mbps Ethernet (LAN) Interface Type
2 Ports Number of Ports
Up to 1 Gbps full duplex per port Test Capacity
TCP/IP, UDP, IPv4, IPv6, VLAN, MPLS Supported Protocols
Plug-in Module / Test Card Form Factor
| Attribute | Value |
|---|---|
| Interface Type | 10/100/1000 Mbps Ethernet (LAN) |
| Number of Ports | 2 Ports |
| Test Capacity | Up to 1 Gbps full duplex per port |
| Supported Protocols | TCP/IP, UDP, IPv4, IPv6, VLAN, MPLS |
| Form Factor | Plug-in Module / Test Card |
| Compatibility | Compatible with Spirent TestCenter Chassis |
| Traffic Generation | Wire-speed traffic generation and analysis |
| Latency Measurement | Hardware-based precision latency measurement |
| Connector Type | RJ-45 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Spirent LAN-3100A Options:
- LAN-3100A - LAN-3200A - 1000Base-SX Ethernet, 2-port, multi-mode, 850nm module
- LAN-3100A - LAN-3200As - 1000Base-LX Ethernet, 2-port, single mode, 1310nm module
- LAN-3100A - SUS-SMB - 12-month Software Update Support Service (includes firmware support)
| Model | LAN-3100A |
|---|

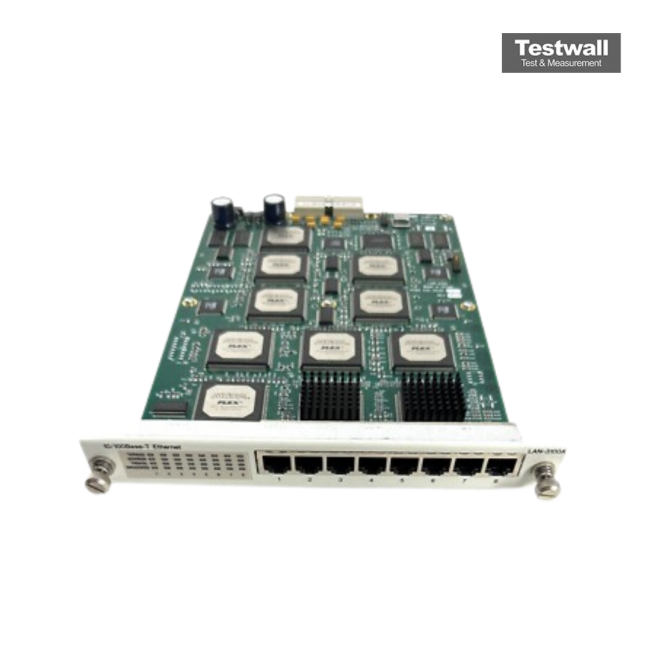

The Spirent LAN-3100A are is an Ethernet Module that can be used to generate, monitor, and capture 10/100/1000 Ethernet traffic. The Module may be used in either SMB-600 or SMB-6000B chassis.
