Stanford Research SG384
| Attribute | Value |
|---|---|
| Frequency Range | DC to 4.05 GHz |
| Frequency Resolution | 1 µHz |
| Maximum RF Output Power | +16.5 dBm |
| Output Power Range | -110 dBm to +16.5 dBm |
| Phase Noise (at 1 GHz, 10 kHz offset) | -116 dBc/Hz |
| Modulation Types | AM, FM, Phase, Pulse, I/Q modulation |
| Timebase Reference | Internal OCXO or external 10 MHz reference input |
| Output Connector | Type-N female (rear BNC for low-frequency output) |
| GPIB / Remote Interface | GPIB, RS-232, and Ethernet interfaces included |
| Power Requirements | 100–240 VAC, 50/60 Hz, 55 W maximum |
| Model | SG384 |
|---|

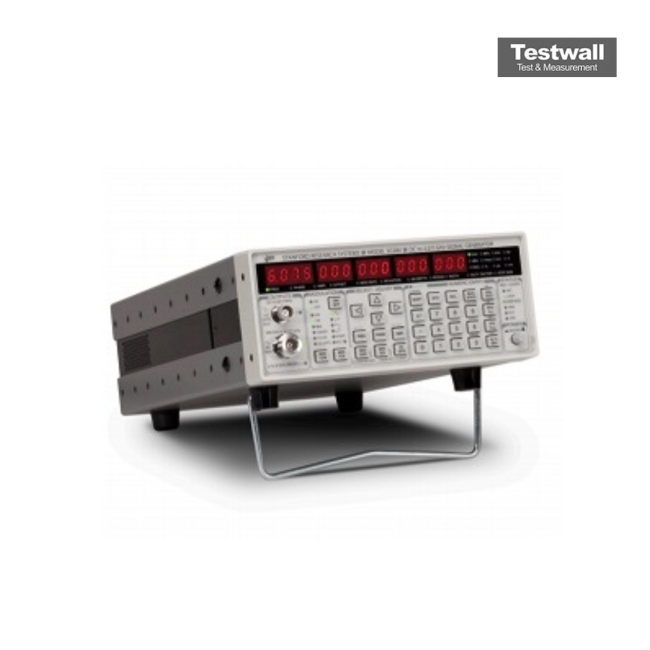

The Stanford Research (SRS) SG384 DC to 4GHz Analog Signal Generator features Rational Approximation Frequency Synthesis for 1 Hz resolution, exceptional phase noise, and advanced modulation options including AM, FM, pulse, and sweeps. It supports frequencies from DC to 4.05 GHz, expandable to 8.10 GHz with optional frequency doubler.
Ideal for precise RF testing, the SG384 offers low-jitter differential clock outputs, external I/Q modulation inputs, and optional rubidium timebase for high stability applications.
Testwall can supply the used Stanford Research (SRS) SG384 DC to 4GHz Analog Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Stanford Research (SRS) SG384 DC to 4GHz Analog Signal Generator.
