TDK-Lambda GEN100-33
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 100 VDC |
| Output Current | 0 – 33 A |
| Output Power | 3300 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Voltage Regulation (Line/Load) | 0.01% + 2 mV |
| Current Regulation (Line/Load) | 0.01% + 2 mA |
| Output Ripple & Noise (RMS) | 30 mV RMS / 150 mV Peak-to-Peak |
| Programming Interface | Analog (0–5V / 0–10V), RS-232/RS-485 (optional GPIB/LAN/USB) |
| Operating Temperature | 0 – 50 °C |
TDK-Lambda GEN100-33 Options:
- GEN100-33 - IEMD - GPIB (Multi-Drop Master) Interface
- GEN100-33 - MD - Multi-Drop Slave Interface
- GEN100-33 - IS510 - Voltage Programming Isolated Analog Interface
- GEN100-33 - IS420 - Current Programming Isolated Analog Interface
- GEN100-33 - LAN - LAN Interface (LXI Compliant to Class C)
- GEN100-33 - USB - USB Interface
- GEN100-33 - 1P230 - AC Input: Single Phase 230VAC
- GEN100-33 - 3P208 - AC Input: Three Phase 208VAC
- GEN100-33 - 3P400 - AC Input: Three Phase 400VAC
| Model | GEN100-33 |
|---|

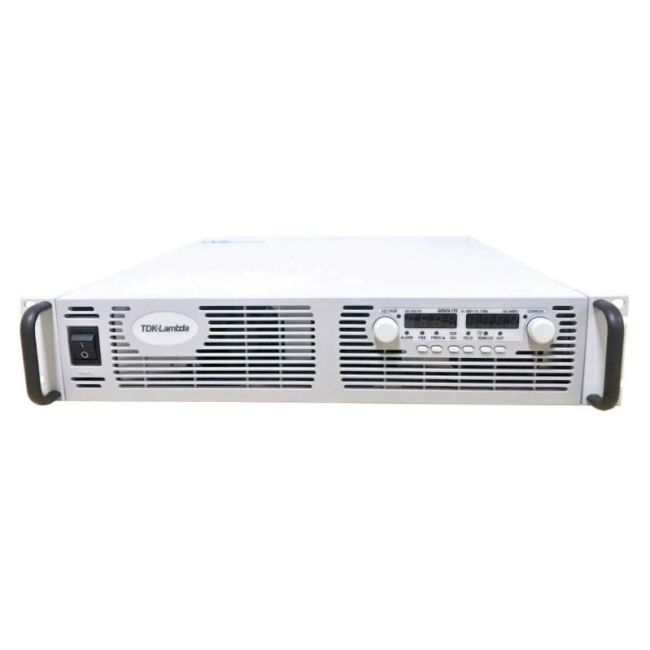

The TDK‑Lambda GEN100‑33 programmable power supply packs 100 V at 33 A into a compact 2U form factor, offering industry‑leading power density. It delivers ultra‑low ripple and noise, includes RS‑232 and RS‑485 interfaces, and supports auto‑parallel operation with active current sharing for scalable output power. Advanced features include Safe Re‑Start, Last Setting Memory, and Power Factor Correction of 0.99 at full load—ensuring compliance with European EMC standards.
Designed for demanding OEM, industrial, and laboratory environments, the GEN100‑33 features a user‑friendly front panel with fine and coarse encoder adjustments (~6 or 30 turns) and four‑digit LED voltage and current meters for precise control.
Testwall can supply the used TDK‑Lambda GEN100‑33, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TDK‑Lambda GEN100‑33.
