Tektronix PWS2323
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 32 V |
| Output Current Range | 0 to 3 A |
| Number of Outputs | Single Output |
| Line Regulation (Voltage) | ≤ 0.01% + 2 mV |
| Load Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Ripple and Noise (Voltage, RMS) | ≤ 1 mVrms |
| Display Type | Dual 4-digit LED Display (Voltage and Current) |
| Operating Temperature | 0°C to 40°C |
| Power Input | 100 to 240 VAC, 50/60 Hz |
| Output Power (Maximum) | 96 W |
Tektronix PWS2323 Options:
- PWS2323 - A0 - North America Power Plug
- PWS2323 - A1 - Universal Euro Power Plug
- PWS2323 - A2 - United Kingdom Power Plug
- PWS2323 - A3 - Australia Power Plug
- PWS2323 - A5 - Switzerland Power Plug
- PWS2323 - A10 - China Power Plug
- PWS2323 - A11 - India Power Plug
- PWS2323 - A12 - Brazil Power Plug
- PWS2323 - L0 - English Language
- PWS2323 - L1 - French Language
- PWS2323 - L2 - Italian Language
- PWS2323 - L3 - German Language
- PWS2323 - L4 - Spanish Language
- PWS2323 - L6 - Portuguese Language
- PWS2323 - L7 - Simplified Chinese Language
- PWS2323 - L8 - Traditional Chinese Language
- PWS2323 - L9 - Korean Language
- PWS2323 - L10 - Russian Language
- PWS2323 - C3 - Calibration Service 3 Years
- PWS2323 - C5 - Calibration Service 5 Years
- PWS2323 - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- PWS2323 - D1 - Calibration Data Report
- PWS2323 - D3 - Calibration Data Report 3 Years (with Option C3)
- PWS2323 - D5 - Calibration Data Report 5 Years (with Option C5)
- PWS2323 - R5 - Repair Service 5 Years
- PWS2323 - SILV100 - Standard Warranty Extended to 5 Years
| Model | PWS2323 |
|---|

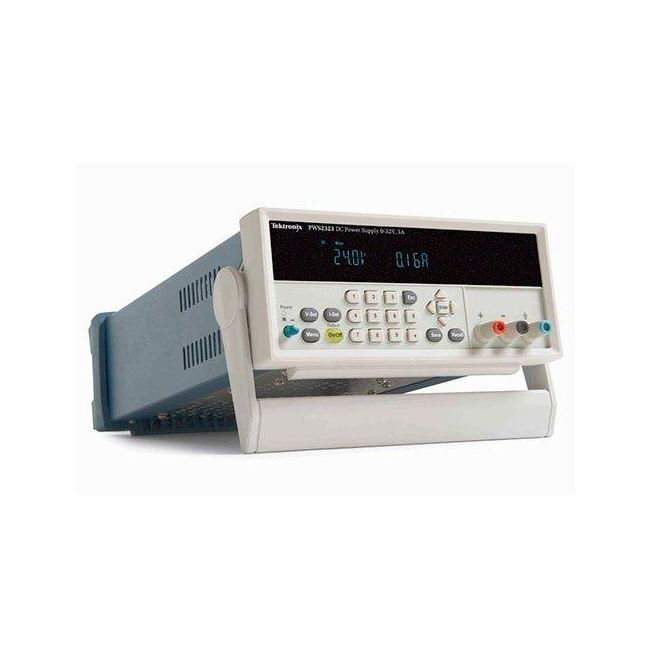

The Tektronix PWS2323 is a 96W DC Power Supply offering precise voltage (0–32V) and current (0–3A) outputs, with 10 mV / 10 mA resolution. Featuring linear regulation, low ripple (<3 mVp-p), and high accuracy (0.05% voltage, 0.2% current), it supports demanding applications in QA, R&D, education, and ATE environments.
Users benefit from intuitive numeric keypad input, step-variable output control, 20 setup memories, and front panel lockout via password protection. Accessories include power cord, user manual, documentation CD, and traceable calibration certificate.
Testwall can supply the used Tektronix PWS2323, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PWS2323.
