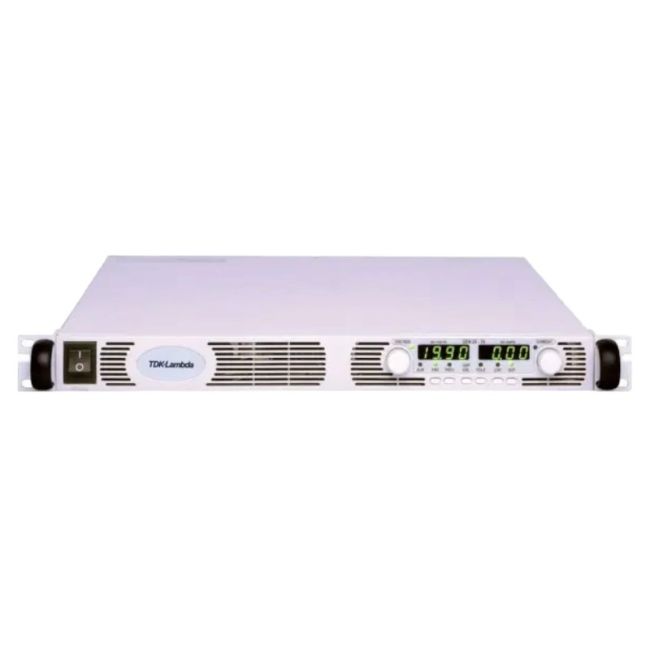

TDK-Lambda GEN600-2.6
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 600 VDC |
| Output Current | 0 – 2.6 A |
| Output Power | 1560 W |
| Input Voltage | 208 / 220 / 230 / 240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Voltage Regulation (Line/Load) | 0.01% of full scale output |
| Current Regulation (Line/Load) | 0.1% of full scale output |
| Programming Interface | Analog (0–5 V / 0–10 V), RS-232, RS-485, GPIB (optional), LAN (optional) |
| Operating Temperature | 0 °C to 50 °C |
| Form Factor / Dimensions | Rack-mountable, 3U (133 mm H × 483 mm W × 600 mm D) |
TDK-Lambda GEN600-2.6 Options:
- GEN600-2.6 - IEEE - GPIB Interface (IEEE 488.2 SCPI)
- GEN600-2.6 - IS510 - Voltage Programming Isolated Analog Interface (0-5V or 0-10V signal)
- GEN600-2.6 - IS420 - Current Programming Isolated Analog Interface (4-20mA signal)
- GEN600-2.6 - LAN - LAN Interface (LXI Compliant to Class C)
- GEN600-2.6 - E - AC Power Cord, Europe (10A/250Vac, INT'L 7/VII, IEC320-C13, L=2m)
- GEN600-2.6 - GB - AC Power Cord, United Kingdom (10A/250Vac, BS1363, IEC320-C13, L=2m)
- GEN600-2.6 - J - AC Power Cord, Japan (13A/125Vac, IEC320-C13, L=2m)
- GEN600-2.6 - I - AC Power Cord, Middle East (10A/250Vac, SI-32, IEC320-C13, L=2m)
- GEN600-2.6 - U - AC Power Cord, North America (13A/125Vac, NEMA 5-15P, IEC320-C13, L=2m)
| Model | GEN600-2.6 |
|---|
The TDK-Lambda GEN600-2.6 is a high-density programmable DC power supply offering 600 V and 2.6 A output, delivering 1.56 kW in a compact 1U rack-mount chassis. It ensures exceptional efficiency (84–88%) with minimal voltage ripple (0.06 Vrms) and current ripple (0.012 A) across 5 Hz–1 MHz, ideal for precision industrial and laboratory applications.
Equipped with RS-232 and RS-485 interfaces, optional LAN, USB, and isolated analog controls, the GEN600-2.6 supports PFC (~0.99), front panel lockout, memory retention, and master-slave parallel operation up to four units for scalable current output.
Testwall provides the TDK-Lambda GEN600-2.6 with expert support and global delivery, ensuring high-performance DC power supply solutions. Our team guarantees reliable service, detailed guidance, and efficient handling for every GEN600-2.6 we supply.
Testwall can supply the used TDK-Lambda GEN600-2.6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TDK-Lambda GEN600-2.6.
