Tektronix

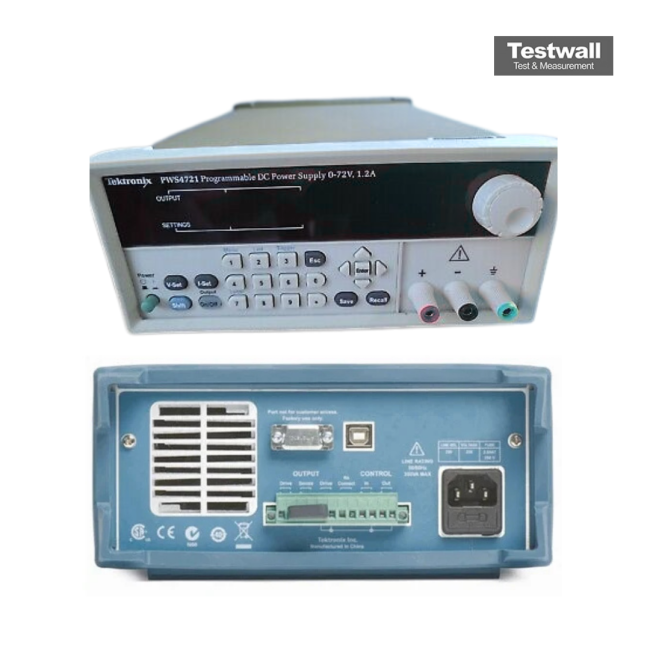

Tektronix PWS4721
Power Supply, 72V, 1.2A, 86W
0 to 72 V Output Voltage Range
0 to 1.2 A Output Current Range
72 W Output Power (Maximum)
1 Number of Output Channels
10 mV Voltage Setting Resolution
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 72 V |
| Output Current Range | 0 to 1.2 A |
| Output Power (Maximum) | 72 W |
| Number of Output Channels | 1 |
| Voltage Setting Resolution | 10 mV |
| Current Setting Resolution | 1 mA |
| Line Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Load Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Interface | USB |
| Display Type | Dual 4-digit LED display |
Tektronix PWS4721 Options:
- PWS4721 - A0 - North America Power Plug
- PWS4721 - A1 - Universal Euro Power Plug
- PWS4721 - A2 - United Kingdom Power Plug
- PWS4721 - A3 - Australia Power Plug
- PWS4721 - A5 - Switzerland Power Plug
- PWS4721 - A10 - China Power Plug
- PWS4721 - A11 - India Power Plug
- PWS4721 - A12 - Brazil Power Plug
- PWS4721 - L0 - English Language
- PWS4721 - L1 - French Language
- PWS4721 - L2 - Italian Language
- PWS4721 - L3 - German Language
- PWS4721 - L4 - Spanish Language
- PWS4721 - L6 - Portuguese Language
- PWS4721 - L7 - Simplified Chinese Language
- PWS4721 - L8 - Traditional Chinese Language
- PWS4721 - L9 - Korean Language
- PWS4721 - L10 - Russian Language
- PWS4721 - C3 - Calibration Service 3 Years
- PWS4721 - C5 - Calibration Service 5 Years
- PWS4721 - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- PWS4721 - D1 - Calibration Data Report
- PWS4721 - D3 - Calibration Data Report 3 Years (with Option C3)
- PWS4721 - D5 - Calibration Data Report 5 Years (with Option C5)
- PWS4721 - R5 - Repair Service 5 Years
- PWS4721 - SILV100 - Standard Warranty Extended to 5 Years
| Model | PWS4721 |
|---|
The Tektronix PWS4721 provides up to 72 V output with 0.03% voltage accuracy and under 5 mVp-p noise. It features linear regulation, remote sensing, list mode, and a USB port for advanced test sequencing and remote programming.
Simultaneous display of output parameters, 40 memory presets, numeric keypad, and overvoltage protection offer precision and convenience for lab power applications.
Testwall can supply the used Tektronix PWS4721, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PWS4721.
