Tektronix 11801C
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Number of Channels | Up to 4 channels (with plug-in modules) |
| Timebase Range | 10 ps/div to 1 ms/div |
| Sampling Rate | Up to 200 GSa/s (equivalent time sampling) |
| Vertical Sensitivity | 10 mV/div to 1 V/div |
| Display | Color CRT display with high-resolution waveform rendering |
| Plug-in Compatibility | Compatible with SD-series sampling plug-in modules |
| Waveform Storage | Internal and floppy disk waveform storage capability |
| Interface/Connectivity | GPIB (IEEE-488) interface for remote control and automation |
| Model | 11801C |
|---|

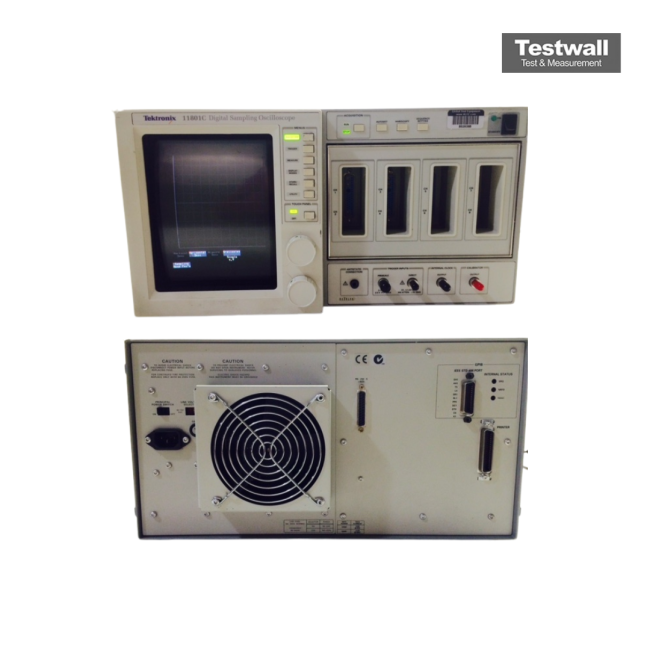

The Tektronix 11801C Digital Sampling Scope Mainframe is a precision digital sampling oscilloscope mainframe, offering high bandwidth and exceptional time resolution for analyzing high-speed signals. Designed for use with sampling modules, it supports advanced triggering and measurement functions, ensuring accurate signal capture and analysis for demanding electronic testing applications.
Ideal for telecommunications, research, and high-speed digital design, the 11801C delivers stable performance and versatile connectivity options, making it an essential instrument for complex signal analysis.
Testwall can supply the used Tektronix 11801C Digital Sampling Scope Mainframe, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 11801C Digital Sampling Scope Mainframe.
