Tektronix

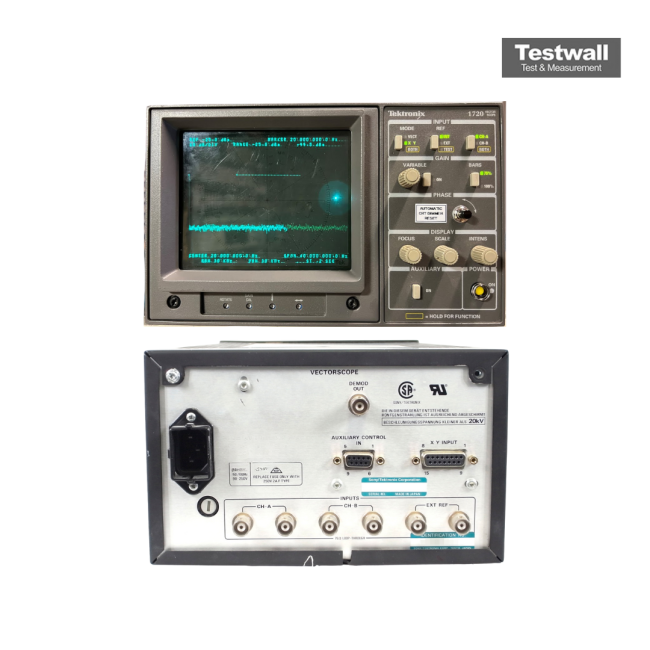

Tektronix 1720
NTSC Vectorscope
Vector/Waveform Monitor Instrument Type
NTSC Video Standard
Built-in CRT Display Display Type
Composite Video Input Signal
75 Ohms Input Impedance
| Attribute | Value |
|---|---|
| Instrument Type | Vector/Waveform Monitor |
| Video Standard | NTSC |
| Display Type | Built-in CRT Display |
| Input Signal | Composite Video |
| Input Impedance | 75 Ohms |
| Bandwidth | 5 MHz |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Power Consumption | Approximately 45W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 381 mm (5.25 in x 8.35 in x 15 in) |
| Model | 1720 |
|---|
The Tektronix 1720 is a compact, portable waveform monitor optimized for NTSC video signal analysis, featuring real-time waveform monitoring, a bright CRT display, and precise line select and zoom functions.
Engineered with a built-in test signal generator, it supports field applications and accurate signal diagnostics for broadcast engineers working with NTSC standards.
Testwall can supply the used Tektronix 1720, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1720.
