Tektronix WFM601A
| Attribute | Value |
|---|---|
| Signal Standards Supported | SMPTE 259M (270 Mb/s), ITU-R BT.601 |
| Input Signal Format | Serial Digital (SD-SDI) 270 Mb/s |
| Number of SDI Inputs | 2 (A and B) |
| Display Type | Waveform Monitor with Vectorscope capability |
| Audio Monitoring | Embedded audio monitoring (AES/EBU), up to 8 channels |
| Ancillary Data Support | VITC, LTC, and ancillary data monitoring |
| Form Factor | Half-rack 1RU modular (WFM601 mainframe compatible) |
| Power Requirements | +5V DC via mainframe, low power consumption module design |
| Gamut Monitoring | Composite gamut and RGB gamut monitoring with alarms |
| Eye Pattern Display | Serial digital eye pattern display for signal integrity verification |
| Model | WFM601A |
|---|

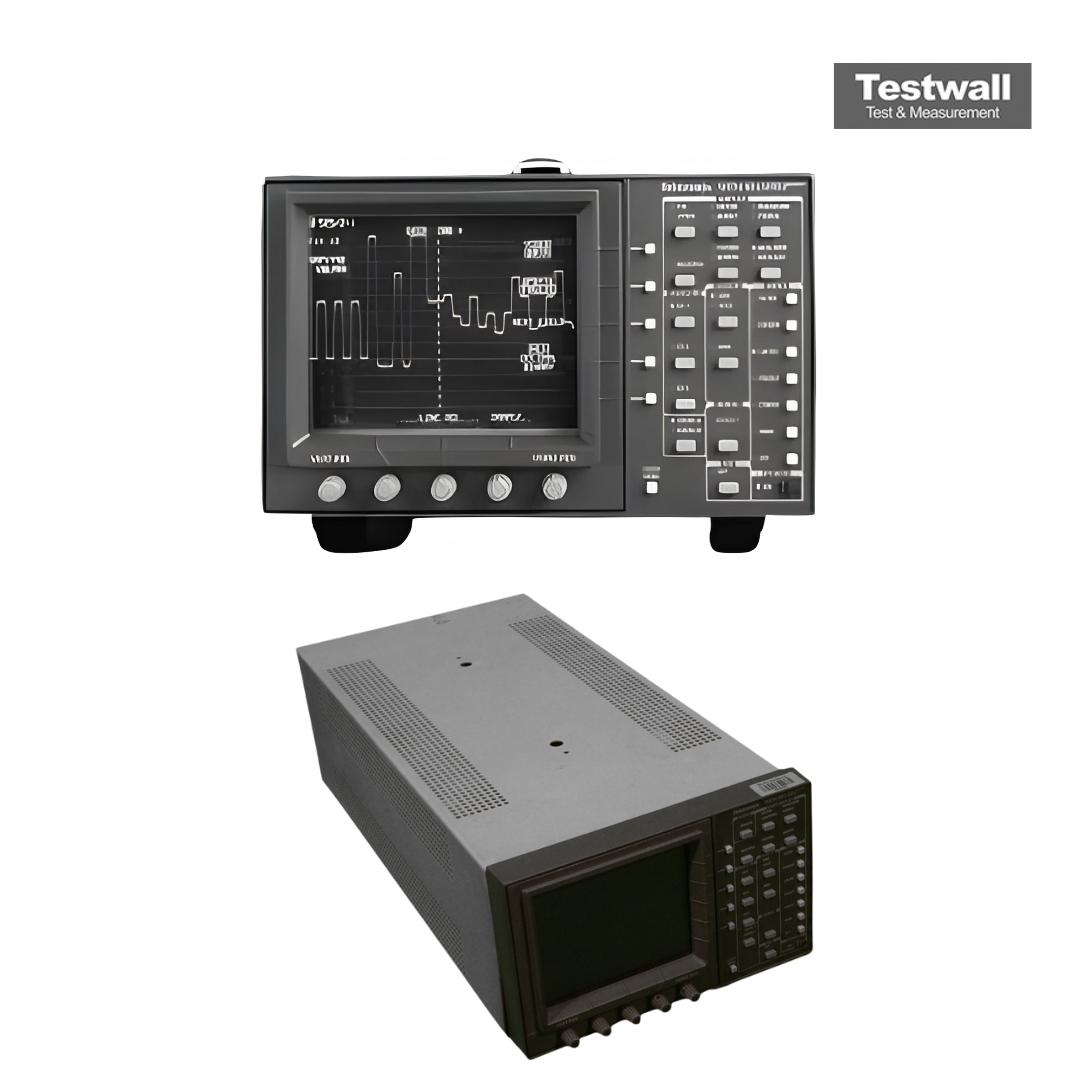

The Tektronix WFM601A is a self-contained, half-rack waveform/vector monitor designed for 270MB serial component signals. It features dual loop-through inputs for uninterrupted digital signal monitoring, real-time CRT display, RGB/Y-Pb-Pr waveform displays, Lightning, Diamond, and Arrowhead gamut monitors, and analog and digital outputs. It supports error detection with SMPTE RP-165, includes Lissajous audio display, and offers high usability for telecine and camera setups.
Ideal for creative operators and engineers, the WFM601A supports component signal monitoring with traditional analog-style displays, making setup and adjustment intuitive and precise across a digital plant.
Testwall can supply the used Tektronix WFM601A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM601A.
