Tektronix

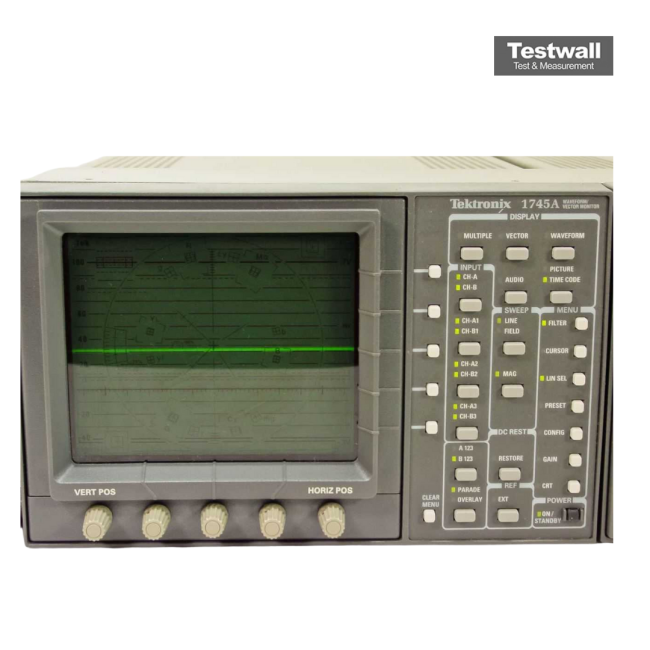

Tektronix 1745A
NTSC/PAL Waveform Monitor
50 MHz Bandwidth
4 Waveform Monitoring Channels Number of Channels
CRT Display Display Type
75 Ohms Input Impedance
NTSC, PAL, SECAM Video Standards Supported
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Number of Channels | 4 Waveform Monitoring Channels |
| Display Type | CRT Display |
| Input Impedance | 75 Ohms |
| Video Standards Supported | NTSC, PAL, SECAM |
| Power Requirements | 90–250 VAC, 45–440 Hz |
| Power Consumption | 55 W Maximum |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 432 mm (5.25 in x 8.35 in x 17.0 in) |
| Weight | 4.5 kg (9.9 lbs) |
| Model | 1745A |
|---|
The Tektronix 1745A DC Power Supply delivers 0 to 35V and 0 to 10A output with exceptional precision and control. Its four-digit LED display provides 10mV and 1mA resolution, supporting accurate voltage and current settings.
Equipped with an output shorting button, this unit allows users to pre-set current limits safely. Ideal for lab and industrial use requiring stable DC power supply.
Testwall can supply the used Tektronix 1745A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1745A.
