Tektronix
Tektronix 1710B
NTSC Waveform Monitor
10 MHz Bandwidth
2 (Dual Channel) Input Channels
Waveform Monitor with CRT Display Display Type
75 Ohms Input Impedance
NTSC, PAL Video Standards Supported
| Attribute | Value |
|---|---|
| Bandwidth | 10 MHz |
| Input Channels | 2 (Dual Channel) |
| Display Type | Waveform Monitor with CRT Display |
| Input Impedance | 75 Ohms |
| Video Standards Supported | NTSC, PAL |
| Power Requirements | 90–250 VAC, 45–66 Hz |
| Power Consumption | Approximately 55 Watts |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 213 mm x 432 mm (5.25 in x 8.38 in x 17 in) |
| Weight | Approximately 5.9 kg (13 lbs) |
| Model | 1710B |
|---|

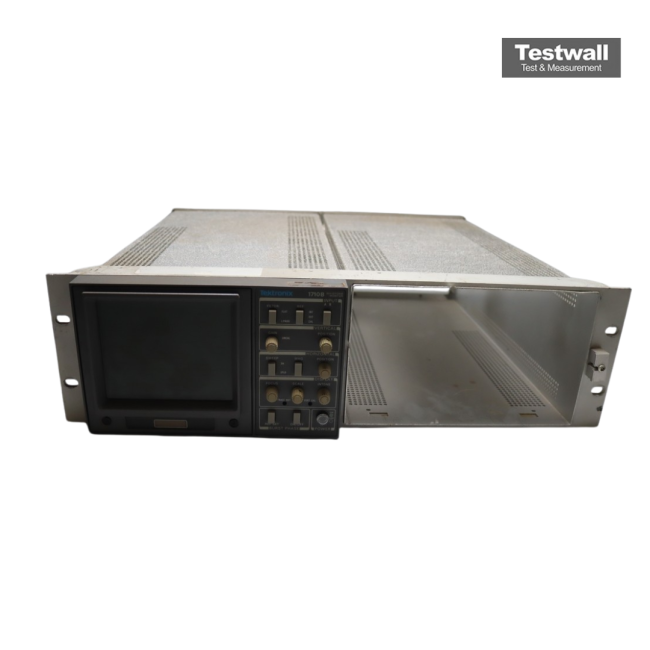

The Tektronix 1710B is a portable waveform monitor tailored for analog video systems, featuring waveform and pulse display capabilities, a bright CRT with sharp trace focus, and NTSC signal compatibility for professional broadcast environments.
Ideal for mobile broadcast vans and on-site video signal verification, it offers both manual and automatic calibration options for flexible operation and precision.
Testwall can supply the used Tektronix 1710B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1710B.
