Tektronix 1755A
| Attribute | Value |
|---|---|
| Input Channels | 2 Channels (Y1 and Y2) |
| Frequency Response | DC to 6 MHz |
| Input Impedance | 75 Ohms |
| Video Standards Supported | NTSC, PAL, SECAM |
| Display Type | Waveform Monitor |
| Vertical Deflection Range | 0.1 V/div to 5 V/div |
| Power Requirements | 90–250 VAC, 45–66 Hz |
| Power Consumption | Approximately 45 Watts |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 432 mm (5.25 in x 8.35 in x 17 in) |
| Model | 1755A |
|---|

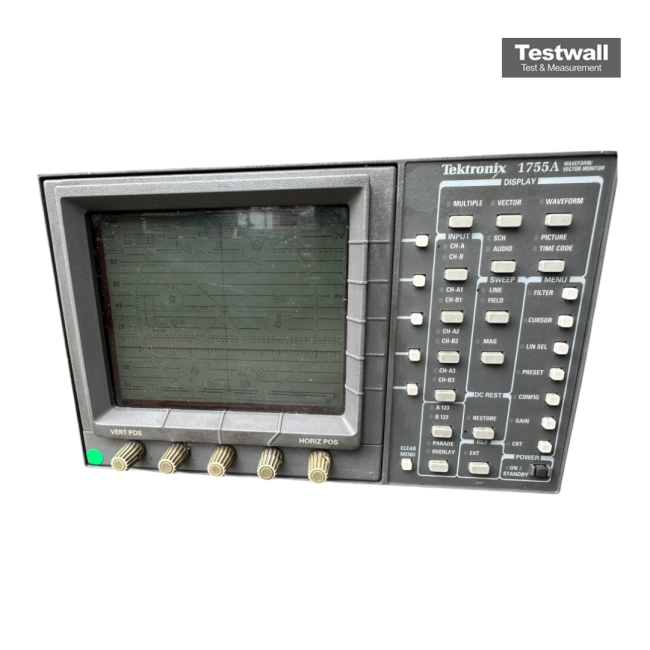

The Tektronix 1755A Waveform Vector Monitor offers advanced composite and component signal monitoring with dedicated vector, lightning, diamond, and bowtie displays. The interface is streamlined with clearly labeled controls and intuitive on-screen labels, supporting NTSC/PAL standards, picture, stereo audio, and time code phasing views.
Ideal for video engineers, it provides full visibility over signal phasing, amplitude, SCH and color framing. All functions are easily accessible for quick analysis and high efficiency.
Testwall can supply the used Tektronix 1755A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1755A.
