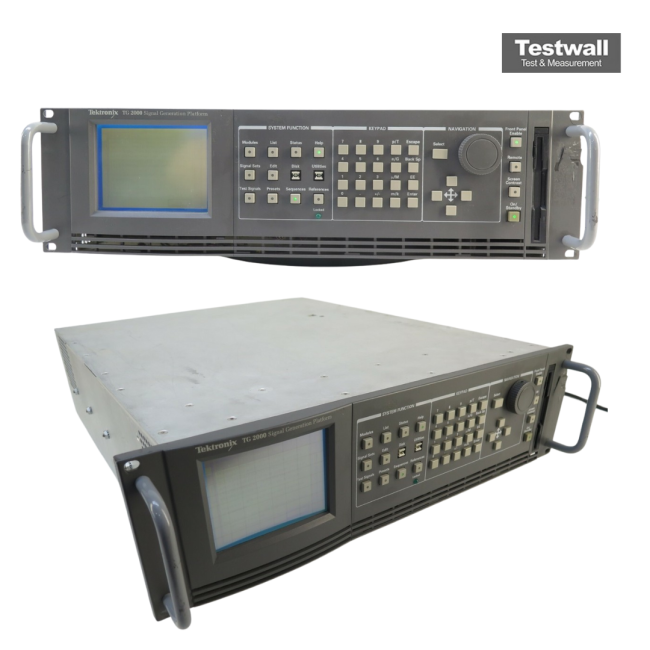

Tektronix TG2000
| Attribute | Value |
|---|---|
| Signal Generation Platform | Modular signal generation platform supporting multiple plug-in modules |
| Number of Module Slots | Up to 10 module slots for simultaneous multi-format signal generation |
| Supported Video Formats | NTSC, PAL, HDTV (720p, 1080i), SDI, HD-SDI, analog component, and composite |
| Output Frequency Accuracy | ±0.5 ppm internal reference frequency accuracy |
| Reference Signal Output | Black burst and tri-level sync reference signal generation |
| Audio Signal Generation | Supports AES/EBU digital audio and analog audio output modules |
| Timing Adjustment Range | Full field timing adjustment with fine and coarse control capabilities |
| Interface and Connectivity | GPIB and RS-232 remote control interfaces for automated testing environments |
| Power Requirements | 100–240 VAC, 50/60 Hz, auto-ranging power supply |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Tektronix TG2000 Options:
- TG2000 - Opt. 88 - Assembled and calibrated as a single unit
- DVG1 - Opt. S1 - SDI Test
- Opt. C3 - Calibration Service 3 Years
- Opt. R3 - Repair Service 3 Years
| Model | TG2000 |
|---|
The Tektronix TG2000 is a multiformat precision signal generation platform offering both analog and digital capabilities. It features a modular expandable design, RAM-based test signal generators, and variable video parameters. This platform conforms to video and audio industry standards and provides reference-quality test signals suitable for the most demanding testing environments.
With test signal libraries in all formats and compatibility with VM700T routines, it offers flexible, user-defined testing supported by a Windows-based development interface.
Testwall can supply the used Tektronix TG2000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TG2000.
