Tektronix 1780R
| Attribute | Value |
|---|---|
| Video Standards Supported | NTSC, PAL, SECAM |
| Measurement Functions | Video signal analysis including sync, burst, luminance, and chrominance measurements |
| Display Type | Built-in CRT display for waveform and vector display |
| Input Channels | Multiple video input channels for simultaneous signal monitoring |
| Waveform Monitor Mode | Line select, field, and overlay display modes |
| Vectorscope Function | Integrated vectorscope for chrominance phase and amplitude analysis |
| Input Impedance | 75 Ohms |
| Signal Bandwidth | 5.5 MHz (luminance bandwidth) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Form Factor | Rackmount, 1U rack-mountable enclosure |
| Model | 1780R |
|---|

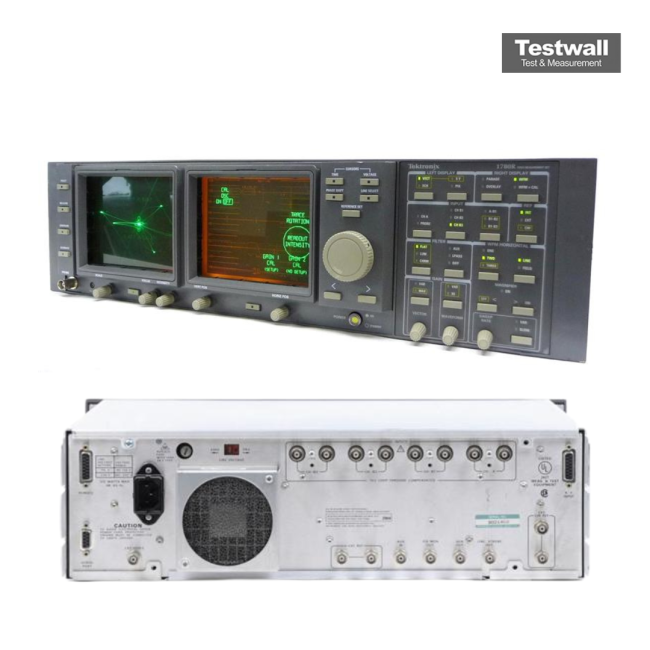

The Tektronix 1780R Video Measurement Set is a dual-CRT Waveform Monitor/Vectorscope designed for professional video analysis. It measures 19 inches in width, 5 1/4 inches in height, and 18 inches in depth, and weighs about 28 pounds. This rack-mountable unit supports bench and portable use, featuring touch-screen control and alphanumeric CRT readouts for intuitive operations.
It allows precise waveform and vectorscope measurements, making it ideal for broadcast environments and video signal analysis tasks.
Testwall can supply the used Tektronix 1780R, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1780R.
