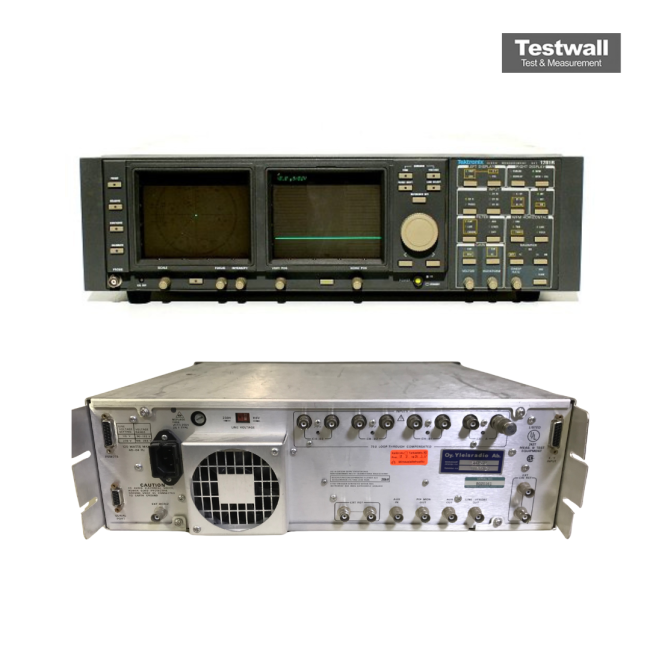

Tektronix 1781R
| Attribute | Value |
|---|---|
| Input Channels | 1 Channel |
| Video Standards Supported | NTSC, PAL, SECAM |
| Frequency Range | DC to 6 MHz |
| Input Impedance | 75 Ohms |
| Display Type | Waveform Monitor with Vectorscope |
| Signal Inputs | BNC Connector |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 381 mm (5.25 in x 8.35 in x 15 in) |
| Weight | Approximately 4.5 kg (9.9 lbs) |
| Model | 1781R |
|---|
The Tektronix 1781R is a rackmount rasterizer waveform monitor that provides real-time signal quality analysis for both composite and component video formats. It features high-resolution display rasterization and advanced timing and alignment functions, making it ideal for high-end broadcast setups.
Equipped with built-in measurement tools and a system-integration-ready rackmount design, the 1781R ensures precision monitoring and seamless workflow compatibility in professional applications.
Testwall can supply the used Tektronix 1781R, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1781R.
