Tektronix 2235
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 0.5 s/div to 50 ns/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Maximum Input Voltage | 400 V (DC + peak AC) |
| Sweep Modes | Auto, Normal, Single Sweep |
| Display Type | CRT (Cathode Ray Tube) |
| Power Requirements | 90–250 VAC, 45–440 Hz |
| Weight | Approximately 7.7 kg (17 lbs) |
| Model | 2235 |
|---|

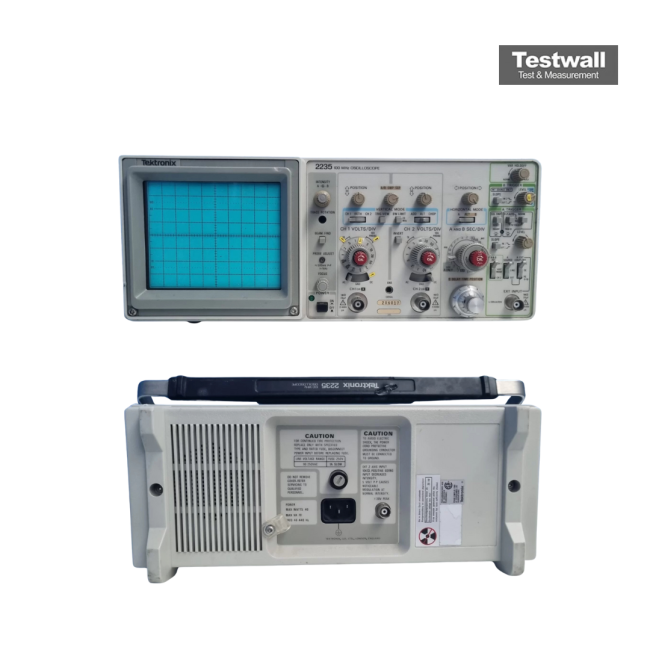

The Tektronix 2235 2 Channel 100MHz Analogue Scope delivers precise measurement capability with two independent channels and a bandwidth of 100MHz, providing accurate waveform analysis for demanding electronic applications. Its high sweep speed and low noise floor make it ideal for detailed signal observation in both research and troubleshooting environments.
Engineered for reliability, the Tektronix 2235 offers versatile triggering, easy-to-use controls, and a compact design, making it suitable for laboratory, production, and field use.
Testwall can supply the used Tektronix 2235 2 Channel 100MHz Analogue Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2235 2 Channel 100MHz Analogue Scope.
