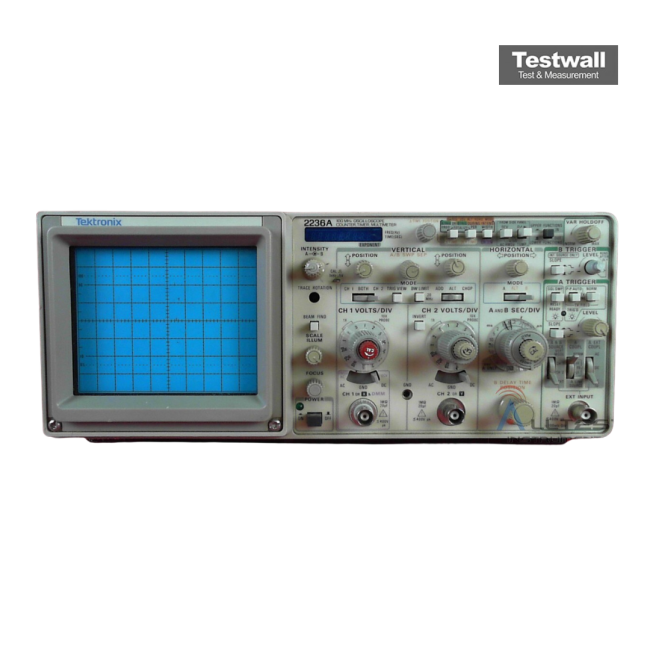

Tektronix 2236A
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 Channels |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 0.5 ns/div to 0.5 s/div |
| Frequency Counter Range | DC to 100 MHz |
| Multimeter Functions | AC/DC Voltage, AC/DC Current, Resistance, Diode Test |
| Display Type | CRT (Cathode Ray Tube) |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Maximum Input Voltage | 400 V (DC + Peak AC) |
| Power Requirements | 90–250 VAC, 45–440 Hz |
| Model | 2236A |
|---|
The Tektronix 2236A 2 Channel 100MHz Analogue Scope offers dual-channel operation with a bandwidth of 100 MHz, delivering precise analogue signal analysis for a wide range of applications. It features high vertical resolution, low noise, and advanced triggering capabilities, ensuring accurate and reliable waveform capture even in complex test environments.
Ideal for electronics troubleshooting, R&D, and educational purposes, this scope provides flexible measurement options with intuitive controls for efficient operation.
Testwall can supply the used Tektronix 2236A 2 Channel 100MHz Analogue Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2236A 2 Channel 100MHz Analogue Scope.
